β-Ga2O3 Thin Films via an Inorganic Sol-Gel Spin Coating: Preparation and Characterization.

Abstract

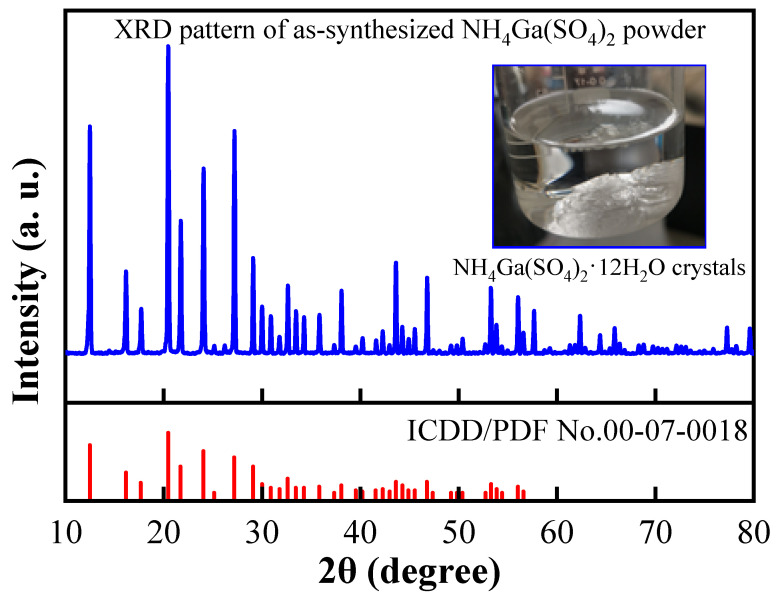

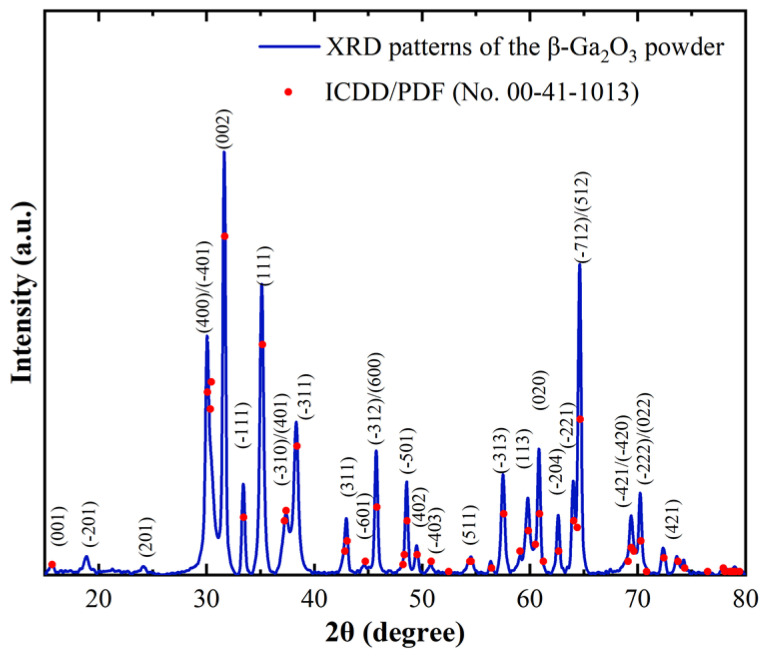

β-Ga₂O₃ holds significant promise for use in ultraviolet (UV) detectors and high-power devices due to its ultra-wide bandgap. However, the cost-effective preparation of large-area thin films remains challenging. In this study, β-Ga₂O₃ thin films are prepared using an inorganic solution reaction spin-coating method followed by post-annealing. The structures, surface morphologies, and optical properties of the films are then characterized using X-ray diffraction, scanning electron microscopy, and ultraviolet-visible spectrophotometry. A low-cost Ga metal was used to produce NH₄Ga(SO₄)₂, which was then converted into a precursor solution and spin-coated onto sapphire and quartz substrates. Ten cycles of spin coating produced smoother films, although higher annealing temperatures induced more cracks. The films on the (0001) sapphire subjected to spin-coating and preheating processes that were repeated for ten cycles, followed by annealing at 800 °C, had a preferred orientation in the [-201] direction. All the films showed high transmittances of 85% in ultraviolet-visible light with wavelengths above 400 nm. The films on the (0001) sapphire substrate that were annealed at 800 °C and 1000 °C exhibited bandgaps of 4.8 and 4.98 eV, respectively. The sapphire substrates demonstrated a superior compatibility for high-quality Ga₂O₃ film fabrication compared to quartz. This method offers a cost-effective and efficient approach for producing high-quality β-Ga₂O₃ films on high-temperature-resistant substrates with promising potential for optoelectronic applications.
