Diagnosis of moderate-to-severe hepatic steatosis using deep learning-based automated attenuation measurements on contrast-enhanced CT

IF 2.2 3区医学 Q2 RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING Abdominal Radiology Pub Date : 2025-03-17 DOI:10.1007/s00261-025-04872-5

Hae Young Kim, Kyung Jin Lee, Seung Soo Lee, Se Jin Choi, Dong Hwan Kim, Subin Heo, Hyeon Ji Jang, Sang Hyun Choi

{"title":"Diagnosis of moderate-to-severe hepatic steatosis using deep learning-based automated attenuation measurements on contrast-enhanced CT","authors":"Hae Young Kim, Kyung Jin Lee, Seung Soo Lee, Se Jin Choi, Dong Hwan Kim, Subin Heo, Hyeon Ji Jang, Sang Hyun Choi","doi":"10.1007/s00261-025-04872-5","DOIUrl":null,"url":null,"abstract":"<div><h3>Purpose</h3><p>To evaluate the utility of deep learning-based automated attenuation measurements on contrast-enhanced CT (CECT) for diagnosing moderate-to-severe hepatic steatosis (HS), using histology as reference standard.</p><h3>Methods</h3><p>This retrospective study included 3,620 liver donors (2,393 men and 1,227 women; mean age, 31.7 ± 9.4 years), divided into the development (<i>n</i> = 2,714) and test (<i>n</i> = 906) cohorts. Attenuation values of the liver and spleen on CECT were measured both manually and using a deep learning algorithm (before and after radiologists’ correction of segmentation errors). Performance of: (1) liver attenuation and (2) liver–spleen attenuation difference for diagnosing moderate-to-severe HS (> 33%) was assessed using the area under the receiver operating characteristic curve (AUC). Three different criteria targeting 95% sensitivity, 95% specificity, and the maximum Youden’s index, respectively, for diagnosing moderate-to-severe HS, were developed and validated.</p><h3>Results</h3><p>The performance of deep learning-based measurements did not differ significantly, with or without radiologists’ corrections (<i>p</i> = 0.13). Liver–spleen attenuation difference outperformed liver attenuation alone in diagnosing moderate-to-severe HS in both deep learning-based (AUC, 0.868 vs. 0.821; <i>p</i> = 0.001) and manual (AUC, 0.871 vs. 0.823; <i>p</i> = 0.001) measurements. In the test cohort, the criterion targeting 95% sensitivity for diagnosing moderate-to-severe HS (liver–spleen attenuation difference ≤ 2.8 HU) yielded 92.0% (69/75) sensitivity and 48.5% (403/831) specificity. The criterion targeting 95% specificity (liver–spleen attenuation difference ≤ -18.8 HU) yielded 53.3% (40/75) sensitivity and 95.7% (795/831) specificity. The criterion targeting the maximum Youden’s index (liver–spleen attenuation difference ≤ -8.2 HU) yielded 82.7% (62/75) sensitivity and 80.7% (671/831) specificity.</p><h3>Conclusion</h3><p>Deep learning-based automated measurements of liver and spleen attenuation on CECT can be used reliably to detect moderate-to-severe HS.</p><h3>Graphical Abstract</h3><div><figure><div><div><picture><source><img></source></picture></div></div></figure></div></div>","PeriodicalId":7126,"journal":{"name":"Abdominal Radiology","volume":"50 9","pages":"4139 - 4147"},"PeriodicalIF":2.2000,"publicationDate":"2025-03-17","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Abdominal Radiology","FirstCategoryId":"3","ListUrlMain":"https://link.springer.com/article/10.1007/s00261-025-04872-5","RegionNum":3,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING","Score":null,"Total":0}

引用次数: 0

Abstract

Purpose

To evaluate the utility of deep learning-based automated attenuation measurements on contrast-enhanced CT (CECT) for diagnosing moderate-to-severe hepatic steatosis (HS), using histology as reference standard.

Methods

This retrospective study included 3,620 liver donors (2,393 men and 1,227 women; mean age, 31.7 ± 9.4 years), divided into the development (n = 2,714) and test (n = 906) cohorts. Attenuation values of the liver and spleen on CECT were measured both manually and using a deep learning algorithm (before and after radiologists’ correction of segmentation errors). Performance of: (1) liver attenuation and (2) liver–spleen attenuation difference for diagnosing moderate-to-severe HS (> 33%) was assessed using the area under the receiver operating characteristic curve (AUC). Three different criteria targeting 95% sensitivity, 95% specificity, and the maximum Youden’s index, respectively, for diagnosing moderate-to-severe HS, were developed and validated.

Results

The performance of deep learning-based measurements did not differ significantly, with or without radiologists’ corrections (p = 0.13). Liver–spleen attenuation difference outperformed liver attenuation alone in diagnosing moderate-to-severe HS in both deep learning-based (AUC, 0.868 vs. 0.821; p = 0.001) and manual (AUC, 0.871 vs. 0.823; p = 0.001) measurements. In the test cohort, the criterion targeting 95% sensitivity for diagnosing moderate-to-severe HS (liver–spleen attenuation difference ≤ 2.8 HU) yielded 92.0% (69/75) sensitivity and 48.5% (403/831) specificity. The criterion targeting 95% specificity (liver–spleen attenuation difference ≤ -18.8 HU) yielded 53.3% (40/75) sensitivity and 95.7% (795/831) specificity. The criterion targeting the maximum Youden’s index (liver–spleen attenuation difference ≤ -8.2 HU) yielded 82.7% (62/75) sensitivity and 80.7% (671/831) specificity.

Conclusion

Deep learning-based automated measurements of liver and spleen attenuation on CECT can be used reliably to detect moderate-to-severe HS.

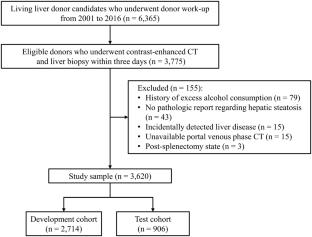

Graphical Abstract

Abstract Image

查看原文

微信好友朋友圈 QQ好友复制链接

本刊更多论文

利用基于深度学习的自动衰减测量在增强CT上诊断中重度肝脏脂肪变性。

目的：以组织学为参考标准，评估基于深度学习的对比增强CT （CECT）自动衰减测量在诊断中重度肝脂肪变性（HS）中的应用价值。方法：这项回顾性研究包括3620名肝脏供者(2393名男性和1227名女性；平均年龄（31.7±9.4岁），分为发展组（n = 2714）和试验组（n = 906）。肝脏和脾脏在CECT上的衰减值分别采用人工和深度学习算法测量（放射科医生校正分割误差前后）。采用受者工作特征曲线下面积（AUC）评估(1)肝脏衰减和(2)肝脾衰减差诊断中重度HS（> 33%）的表现。制定并验证了三种不同的标准，分别针对95%的敏感性、95%的特异性和最大约登指数，用于诊断中重度HS。结果：无论是否有放射科医生的校正，基于深度学习的测量效果没有显著差异（p = 0.13）。基于深度学习的肝脾衰减差诊断中重度HS优于单纯肝衰减(AUC, 0.868 vs. 0.821；p = 0.001)和手工(AUC, 0.871 vs. 0.823；P = 0.001)。在试验队列中，诊断中重度HS（肝脾衰减差≤2.8 HU）的目标灵敏度为95%，敏感性为92.0%(69/75)，特异性为48.5%（404 /831）。该标准特异性为95%（肝脾衰减差≤-18.8 HU），敏感性为53.3%(40/75)，特异性为95.7%（795/831）。以最大约登指数（肝脾衰减差≤-8.2 HU）为标准的敏感性为82.7%(62/75)，特异性为80.7%（671/831）。结论：基于深度学习的CECT肝脾衰减自动测量可可靠地用于中重度HS的检测。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
