High-Sensitivity Magnetic Field Sensor Based on an Optoelectronic Oscillator with a Mach-Zehnder Interferometer.

Abstract

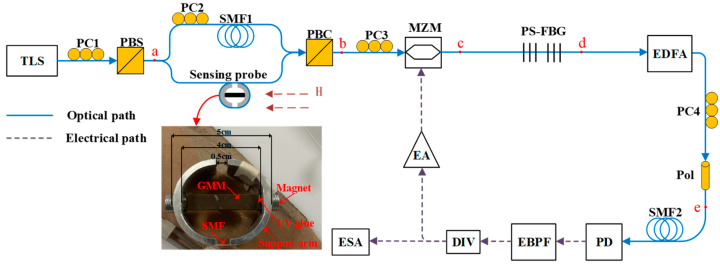

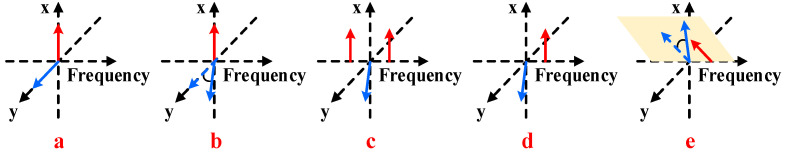

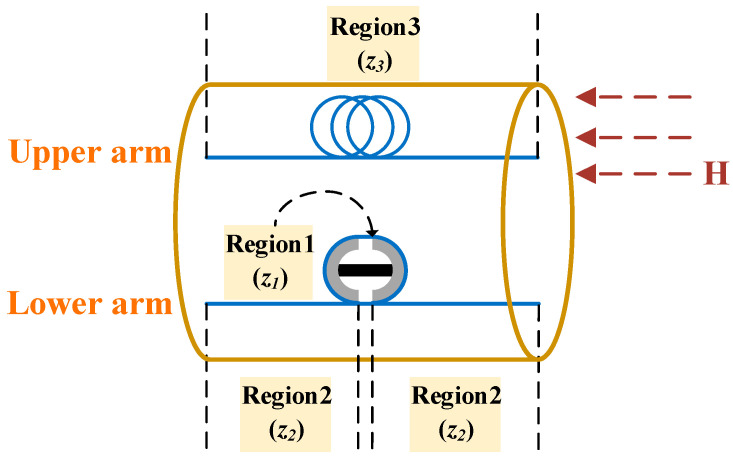

A high-sensitivity magnetic field sensor based on an optoelectronic oscillator (OEO) with a Mach-Zehnder interferometer (MZI) is proposed and experimentally demonstrated. The magnetic field sensor consists of a fiber Mach-Zehnder interferometer, with the lower arm of the interferometer wound around a magnetostrictive transducer. Due to the magnetostrictive effect, an optical phase shift induced by magnetic field variation is generated between two orthogonal light waves transmitted in the upper and lower arms of the MZI. The polarization-dependent property of a Mach-Zehnder modulator (MZM) is utilized to transform the magnetostrictive phase shift into the phase difference between the sidebands and optical carrier, which is mapped to the oscillating frequency upon the completion of an OEO loop. High-sensitivity magnetic field sensing is achieved by observing the frequency shift of the radio frequency (RF) signal. Temperature-induced cross-sensitivity is mitigated through precise length matching of the MZI arms. In the experiment, the high magnetic field sensitivity of 6.824 MHz/mT with a range of 25 mT to 25.3 mT is achieved and the sensing accuracy measured by an electrical spectrum analyzer (ESA) at "maxhold" mode is 0.002 mT. The proposed sensing structure has excellent magnetic field detection performance and provides a solution for temperature-insensitive magnetic field detection, which would have broad application prospects.
