Uncovering Key Parameters in Perfluorosulfonic Acid (PFSA) Membrane Fuel Cells to Enhance Performance.

Abstract

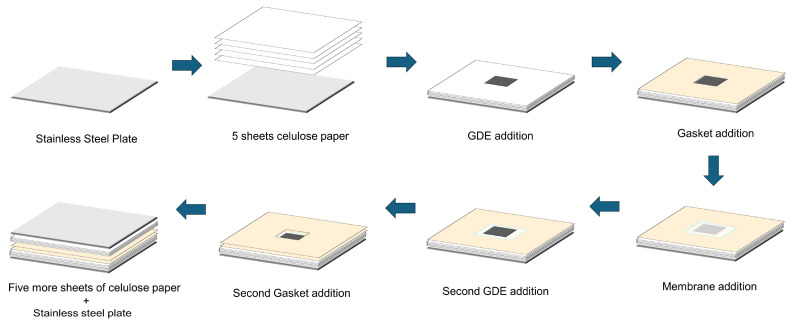

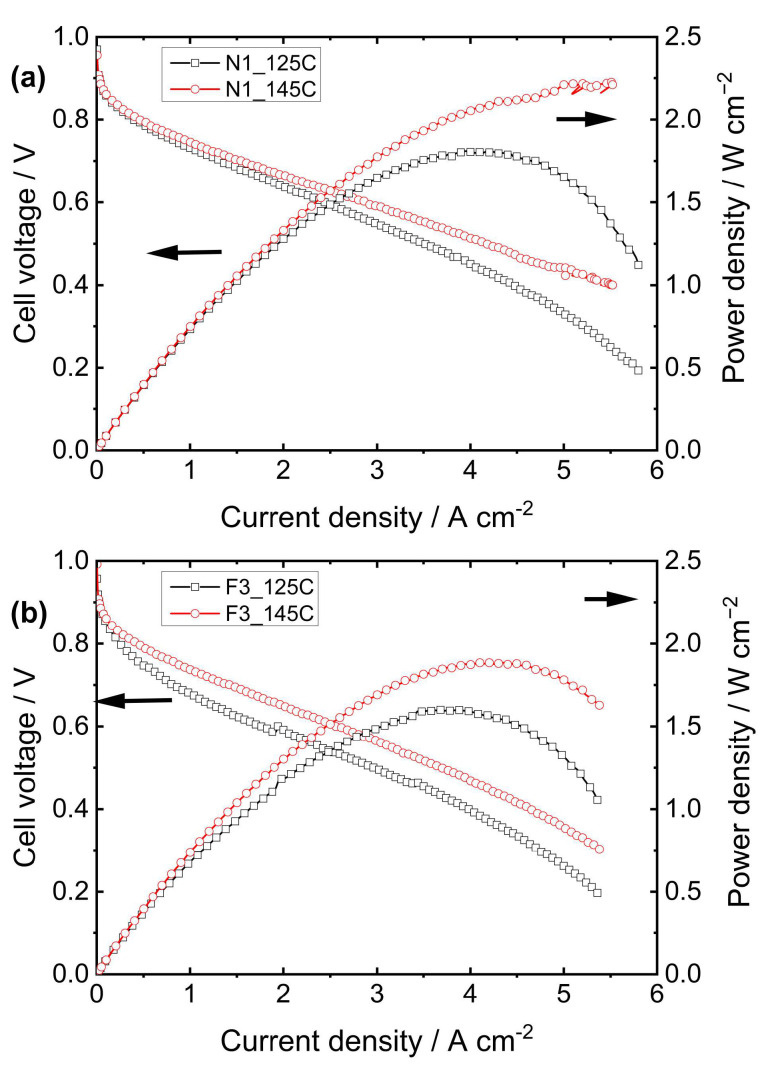

The conversion of chemical energy to electricity in proton exchange membrane fuel cells (PEMFCs) is essential for replacing fossil fuel engines and achieving net-zero CO₂ emissions. In the pursuit of more efficient PEMFCs, certain often-overlooked parameters significantly influence cell performance by either weakening the interaction between the catalytic layer (CL) and the membrane or restricting gas access to the CL. This study examines the effects of cell tightening and hot-pressing conditions on three similar-thickness perfluorosulfonic acid (PFSA) membranes: Aquivion^®, Fumapem, and Nafion^®. The results reveal that the hot-pressing method employing higher pressure and a lower temperature (125C method) yields lower fuel cell performance compared to the method utilizing a higher temperature and lower pressure (145C method). Furthermore, incorporating cellulose paper as a pressure homogenizer in the MEA preparation setup significantly improved current density by approximately 2.5 times compared to the traditional assembly method. Cyclic voltammetry with Ar-feed in the cathode showed that all prepared MEAs exhibited a similar platinum surface area; however, MEAs pressed at higher temperatures displayed slightly lower hydrogen desorption charge values. The torque applied to the bolts does not show a consistent trend in fuel cell performance, but optimal torque values can enhance PEMFC performance under certain conditions.
