Interpretable Machine Learning Predictions of Bruch's Membrane Opening-Minimum Rim Width Using Retinal Nerve Fiber Layer Values and Visual Field Global Indexes.

IF 3.7 3区 医学 Q2 ENGINEERING, BIOMEDICAL Bioengineering Pub Date : 2025-03-20 DOI:10.3390/bioengineering12030321
Sat Byul Seo, Hyun-Kyung Cho
{"title":"Interpretable Machine Learning Predictions of Bruch's Membrane Opening-Minimum Rim Width Using Retinal Nerve Fiber Layer Values and Visual Field Global Indexes.","authors":"Sat Byul Seo, Hyun-Kyung Cho","doi":"10.3390/bioengineering12030321","DOIUrl":null,"url":null,"abstract":"<p><p>The aim of this study was to predict Bruch's membrane opening-minimum rim Width (BMO-MRW), a relatively new parameter using conventional optical coherence tomography (OCT) parameter, using retinal nerve fibre layer (RNFL) thickness and visual field (VF) global indexes (MD, PSD, and VFI). We developed an interpretable machine learning model that integrates structural and functional parameters to predict BMO-MRW. The model achieved the highest predictive accuracy in the inferotemporal sector (R<sup>2</sup> = 0.68), followed by the global region (R<sup>2</sup> = 0.67) and the superotemporal sector (R<sup>2</sup> = 0.64). Through SHAP (SHapley Additive exPlanations) analysis, we demonstrated that RNFL parameters were significant contributing parameters to the prediction of various BMO-MRW parameters, with age and PSD also identified as critical factors. Our machine learning model could provide useful clinical information about the management of glaucoma when BMO-MRW is not available. Our machine learning model has the potential to be highly beneficial in clinical practice for glaucoma diagnosis and the monitoring of disease progression.</p>","PeriodicalId":8874,"journal":{"name":"Bioengineering","volume":"12 3","pages":""},"PeriodicalIF":3.7000,"publicationDate":"2025-03-20","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11939392/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Bioengineering","FirstCategoryId":"5","ListUrlMain":"https://doi.org/10.3390/bioengineering12030321","RegionNum":3,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"ENGINEERING, BIOMEDICAL","Score":null,"Total":0}
引用次数: 0

Abstract

The aim of this study was to predict Bruch's membrane opening-minimum rim Width (BMO-MRW), a relatively new parameter using conventional optical coherence tomography (OCT) parameter, using retinal nerve fibre layer (RNFL) thickness and visual field (VF) global indexes (MD, PSD, and VFI). We developed an interpretable machine learning model that integrates structural and functional parameters to predict BMO-MRW. The model achieved the highest predictive accuracy in the inferotemporal sector (R2 = 0.68), followed by the global region (R2 = 0.67) and the superotemporal sector (R2 = 0.64). Through SHAP (SHapley Additive exPlanations) analysis, we demonstrated that RNFL parameters were significant contributing parameters to the prediction of various BMO-MRW parameters, with age and PSD also identified as critical factors. Our machine learning model could provide useful clinical information about the management of glaucoma when BMO-MRW is not available. Our machine learning model has the potential to be highly beneficial in clinical practice for glaucoma diagnosis and the monitoring of disease progression.

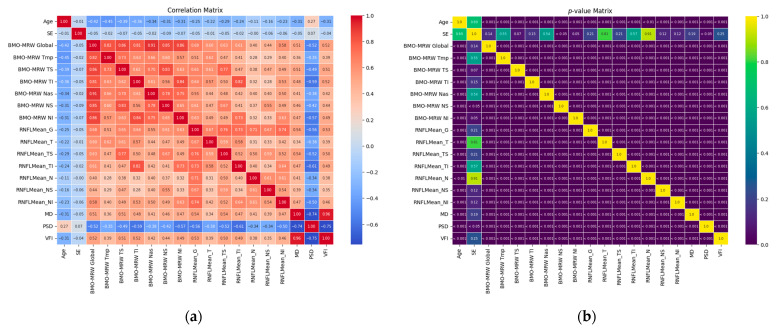

Abstract Image

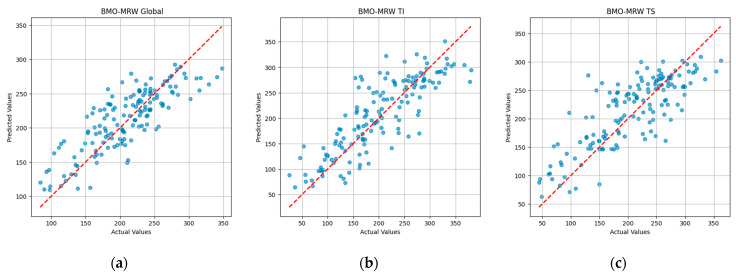

Abstract Image

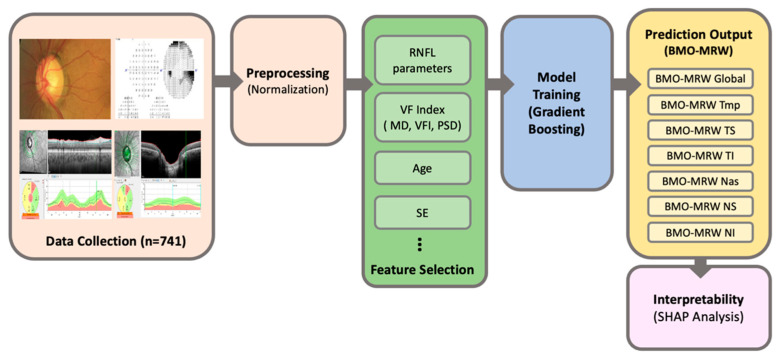

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
基于视网膜神经纤维层值和视野全局指数的Bruch膜开口最小边缘宽度的可解释机器学习预测。
本研究的目的是利用视网膜神经纤维层(RNFL)厚度和视野(VF)全局指数(MD、PSD 和 VFI),使用传统光学相干断层扫描(OCT)参数预测布氏膜开口-最小边缘宽度(BMO-MRW)这一相对较新的参数。我们开发了一个可解释的机器学习模型,该模型整合了结构和功能参数,用于预测 BMO-MRW。该模型在颞下区的预测准确率最高(R2 = 0.68),其次是全球区域(R2 = 0.67)和颞上区(R2 = 0.64)。通过SHAP(SHapley Additive exPlanations)分析,我们证明了RNFL参数是预测BMO-MRW各种参数的重要贡献参数,年龄和PSD也是关键因素。在无法获得 BMO-MRW 的情况下,我们的机器学习模型可以为青光眼的治疗提供有用的临床信息。我们的机器学习模型有望在青光眼诊断和疾病进展监测的临床实践中大显身手。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
