Buried Interface Regulation with a Supramolecular Assembled Template Enables High-Performance Perovskite Solar Cells for Minimizing the VOC Deficit

IF 26.8 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY Advanced Materials Pub Date : 2025-04-09 DOI:10.1002/adma.202418011
Zhenrong Wang, Qiong Liang, Mingliang Li, Guohao Sun, Shiang Li, Tao Zhu, Yu Han, Hao Xia, Zhiwei Ren, Bingcheng Yu, Jiyao Zhang, Ruijie Ma, Hrisheekesh Thachoth Chandran, Lei Cheng, Liren Zhang, Dongyang Li, Shuyan Chen, Xinhui Lu, Chang Yan, Randi Azmi, Kuan Liu, Jinyao Tang, Gang Li
{"title":"Buried Interface Regulation with a Supramolecular Assembled Template Enables High-Performance Perovskite Solar Cells for Minimizing the VOC Deficit","authors":"Zhenrong Wang,&nbsp;Qiong Liang,&nbsp;Mingliang Li,&nbsp;Guohao Sun,&nbsp;Shiang Li,&nbsp;Tao Zhu,&nbsp;Yu Han,&nbsp;Hao Xia,&nbsp;Zhiwei Ren,&nbsp;Bingcheng Yu,&nbsp;Jiyao Zhang,&nbsp;Ruijie Ma,&nbsp;Hrisheekesh Thachoth Chandran,&nbsp;Lei Cheng,&nbsp;Liren Zhang,&nbsp;Dongyang Li,&nbsp;Shuyan Chen,&nbsp;Xinhui Lu,&nbsp;Chang Yan,&nbsp;Randi Azmi,&nbsp;Kuan Liu,&nbsp;Jinyao Tang,&nbsp;Gang Li","doi":"10.1002/adma.202418011","DOIUrl":null,"url":null,"abstract":"<p>Despite the rapid development of perovskite solar cells (PSCs) in the past decade, the open-circuit voltage (<i>V</i><sub>OC</sub>) of PSCs still lags behind the theoretical Shockley–Queisser limit. Energy-level mismatch and unwanted nonradiative recombination at key interfaces are the main factors detrimental to <i>V</i><sub>OC</sub>. Herein, a perovskite crystallization-driven template is constructed at the SnO<sub>2</sub>/perovskite buried interface through a self-assembled amphiphilic phosphonate derivative. The highly oriented supramolecular template grows from an evolutionary selection growth via solid–solid phase transition. This strategy induces perovskite crystallization into a highly preferred (100) orientation toward out-of-plane direction and facilitated carrier extraction and transfer due to the elimination of energy barrier. This self-assembly process positively passivates the intrinsic surface defects at the SnO<sub>2</sub>/perovskite interface through the functionalized moieties, a marked contrast to the passive effect achieved via incidental contacts in conventional passivation methods. As a result, PSCs with buried interface modification exhibit a promising PCE of 25.34%, with a maximum <i>V</i><sub>OC</sub> of 1.23 V, corresponding to a mere 0.306 V deficit (for perovskite bandgap of 1.536 eV), reaching 97.2% of the theoretical <i>V</i><sub>OC</sub> limit. This strategy spontaneously improves the long-term operational stability of PSCs under thermal and moisture stress (ISOS-L-3: MPP, 65 °C, 50% RH, T<sub>92</sub> lifetime exceeding 1200 h).</p>","PeriodicalId":114,"journal":{"name":"Advanced Materials","volume":"37 24","pages":""},"PeriodicalIF":26.8000,"publicationDate":"2025-04-09","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://onlinelibrary.wiley.com/doi/epdf/10.1002/adma.202418011","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Materials","FirstCategoryId":"88","ListUrlMain":"https://advanced.onlinelibrary.wiley.com/doi/10.1002/adma.202418011","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

Despite the rapid development of perovskite solar cells (PSCs) in the past decade, the open-circuit voltage (VOC) of PSCs still lags behind the theoretical Shockley–Queisser limit. Energy-level mismatch and unwanted nonradiative recombination at key interfaces are the main factors detrimental to VOC. Herein, a perovskite crystallization-driven template is constructed at the SnO2/perovskite buried interface through a self-assembled amphiphilic phosphonate derivative. The highly oriented supramolecular template grows from an evolutionary selection growth via solid–solid phase transition. This strategy induces perovskite crystallization into a highly preferred (100) orientation toward out-of-plane direction and facilitated carrier extraction and transfer due to the elimination of energy barrier. This self-assembly process positively passivates the intrinsic surface defects at the SnO2/perovskite interface through the functionalized moieties, a marked contrast to the passive effect achieved via incidental contacts in conventional passivation methods. As a result, PSCs with buried interface modification exhibit a promising PCE of 25.34%, with a maximum VOC of 1.23 V, corresponding to a mere 0.306 V deficit (for perovskite bandgap of 1.536 eV), reaching 97.2% of the theoretical VOC limit. This strategy spontaneously improves the long-term operational stability of PSCs under thermal and moisture stress (ISOS-L-3: MPP, 65 °C, 50% RH, T92 lifetime exceeding 1200 h).

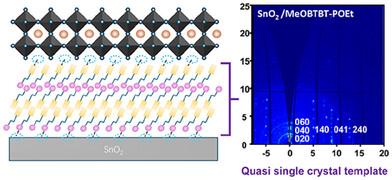

Abstract Image

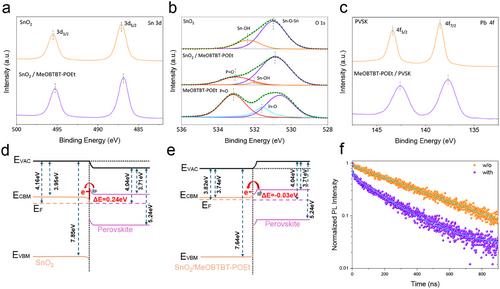

Abstract Image

Abstract Image

Abstract Image

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
埋藏界面调节与超分子组装模板使高性能钙钛矿太阳能电池最大限度地减少VOC赤字
尽管近十年来钙钛矿太阳能电池(PSCs)发展迅速,但PSCs的开路电压(VOC)仍然落后于理论的Shockley-Queisser极限。关键界面的能级失配和不必要的非辐射复合是VOC的主要危害因素。本文通过自组装的两亲性膦酸盐衍生物在SnO2/钙钛矿埋藏界面构建了钙钛矿结晶驱动模板。高取向的超分子模板是通过固-固相变进化选择生长出来的。该策略诱导钙钛矿向面外方向高度优选(100)取向结晶,并且由于消除了能量势垒,促进了载流子的提取和转移。这种自组装工艺通过官能化基团积极钝化SnO2/钙钛矿界面上的固有表面缺陷,与传统钝化方法通过偶然接触获得的钝化效果形成鲜明对比。结果表明,埋藏界面改性后的PSCs的PCE为25.34%,最大VOC为1.23 V,对应的缺陷仅为0.306 V(钙钛矿带隙为1.536 eV),达到理论VOC限值的97.2%。该策略自发地提高了psc在热湿应力(iso - l -3: MPP, 65°C, 50% RH, T92寿命超过1200小时)下的长期运行稳定性。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
