Achieving >23% Efficiency Perovskite Solar Minimodules with Surface Conductive Coordination Polymer

Abstract

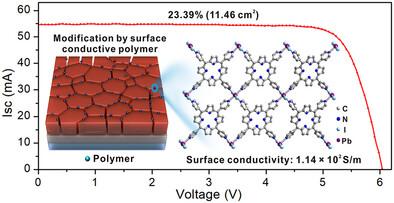

Despite the reported high efficiencies of small-area perovskite photovoltaic cells, the deficiency in large-area modules has impeded the commercialization of perovskite photovoltaics. Enhancing the surface/interface conductivity and carrier-transport in polycrystalline perovskite films presents significant potential for boosting the efficiency of perovskite solar modules (PSMs) by mitigating voltage losses. This is particularly critical for multi-series connected sub-cell modules, where device resistance significantly impacts performance compared to small-area cells. Here, an effective approach is reported for decreasing photovoltage loss through surface/interface modulation of perovskite film with a surface conductive coordination polymer. With post-treatment of meso-tetra pyridine porphyrin on perovskite film, PbI₂ on perovskite film reacts with pyridine units in porphyrins to generate an iso-structural 2D coordination polymer with a layered surface conductivity as high as 1.14 × 10² S m⁻¹, due to the effect of surface structure reconstruction. Modified perovskite film exhibits greatly increased surface/interface conductivity. The champion PSM obtains a record efficiency up to 23.39% (certified 22.63% with an aperture area of 11.42 cm²) featuring only 0.33-volt voltage loss. Such a modification also leads to substantially improved operational device stability.
