Experimental investigation and parametric optimization for minimization of dilution during direct laser metal deposition of tungsten carbide and cobalt powder mixture on SS304 substrate

IF 4.6 2区工程技术 Q2 ENGINEERING, CHEMICAL Powder Technology Pub Date : 2021-09-01 DOI:10.1016/j.powtec.2021.05.056

Anitesh Kumar Singh , Kalinga Simant Bal , Dipanjan Dey , Amit Kumar Das , Abhishek Rudra Pal , Dilip Kumar Pratihar , Asimava Roy Choudhury

{"title":"Experimental investigation and parametric optimization for minimization of dilution during direct laser metal deposition of tungsten carbide and cobalt powder mixture on SS304 substrate","authors":"Anitesh Kumar Singh , Kalinga Simant Bal , Dipanjan Dey , Amit Kumar Das , Abhishek Rudra Pal , Dilip Kumar Pratihar , Asimava Roy Choudhury","doi":"10.1016/j.powtec.2021.05.056","DOIUrl":null,"url":null,"abstract":"<div><p><span>Optimization of process parameters for direct laser metal deposition of WC (88 wt%) and Co (12 wt%) mixed powder on SS304 substrate was carried out to obtain minimum dilution. The effect of process parameters on clad geometric elements was expressed through polynomial relations. A mathematical expression for dilution was developed in terms of clad geometric elements and then verified with experimentally obtained dilution. The regression analysis for each geometric element and dilution was also studied. To obtain an optimized set of process parameters four recently developed optimization algorithms were used, which was then followed by a confirmation test. Bonobo Optimizer algorithm was fast during the search for the globally optimum solution. A detailed macroscopic, microstructural, thermo-cycle and </span>XRD analysis for the confirmed optimized run was carried out along with the comparison study. The hardness behaviour of clad tracks was also studied by comparing it with that of the substrate.</p></div>","PeriodicalId":407,"journal":{"name":"Powder Technology","volume":"390 ","pages":"Pages 339-353"},"PeriodicalIF":4.6000,"publicationDate":"2021-09-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://sci-hub-pdf.com/10.1016/j.powtec.2021.05.056","citationCount":"15","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Powder Technology","FirstCategoryId":"5","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0032591021004630","RegionNum":2,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"ENGINEERING, CHEMICAL","Score":null,"Total":0}

引用次数: 15

Abstract

Optimization of process parameters for direct laser metal deposition of WC (88 wt%) and Co (12 wt%) mixed powder on SS304 substrate was carried out to obtain minimum dilution. The effect of process parameters on clad geometric elements was expressed through polynomial relations. A mathematical expression for dilution was developed in terms of clad geometric elements and then verified with experimentally obtained dilution. The regression analysis for each geometric element and dilution was also studied. To obtain an optimized set of process parameters four recently developed optimization algorithms were used, which was then followed by a confirmation test. Bonobo Optimizer algorithm was fast during the search for the globally optimum solution. A detailed macroscopic, microstructural, thermo-cycle and XRD analysis for the confirmed optimized run was carried out along with the comparison study. The hardness behaviour of clad tracks was also studied by comparing it with that of the substrate.

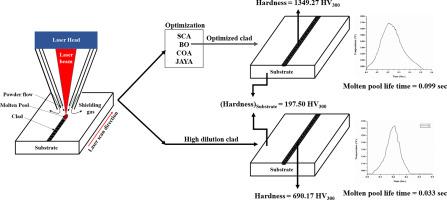

Abstract Image

查看原文

微信好友朋友圈 QQ好友复制链接

本刊更多论文

在SS304衬底上直接激光沉积碳化钨和钴粉混合物稀释最小化的实验研究及参数优化

优化了在SS304衬底上直接激光沉积WC (88 wt%)和Co (12 wt%)混合粉末的工艺参数，以获得最小稀释。通过多项式关系表示工艺参数对覆层几何元件的影响。用包覆几何单元建立了稀释的数学表达式，并用实验得到的稀释值进行了验证。并对各几何元素和稀释度进行了回归分析。为了获得一组优化的工艺参数，使用了最近开发的四种优化算法，然后进行了验证测试。Bonobo优化算法在搜索全局最优解时速度较快。对确定的优化运行进行了详细的宏观、微观结构、热循环和XRD分析，并进行了对比研究。通过与衬底的硬度比较，研究了覆层轨道的硬度行为。
