用于长寿命全固态钠电池的硫化物基固体电解质对潮湿空气的耐受性高

IF 24.4 1区 材料科学 Q1 CHEMISTRY, PHYSICAL Advanced Energy Materials Pub Date : 2024-09-10 DOI:10.1002/aenm.202401504
Yayu Guo, Kai Liu, Cheng Li, Dawei Song, Hongzhou Zhang, Zhenyu Wang, Yufen Yan, Lianqi Zhang, Sheng Dai
{"title":"用于长寿命全固态钠电池的硫化物基固体电解质对潮湿空气的耐受性高","authors":"Yayu Guo, Kai Liu, Cheng Li, Dawei Song, Hongzhou Zhang, Zhenyu Wang, Yufen Yan, Lianqi Zhang, Sheng Dai","doi":"10.1002/aenm.202401504","DOIUrl":null,"url":null,"abstract":"Sulfide-based superionic conductors present great promise to achieve high energy density and safety for all-solid-state sodium batteries (ASSSBs). However, the poor electrolyte/electrode interface compatibility and humid air stability seriously hinder their deployment in ASSSBs. Herein, a series of high-performance Na<sub>3-□</sub>Sb<sub>1-4x</sub>(SnWCaTi)<sub>x</sub>S<sub>4</sub> sulfide-based solid electrolytes (SSEs) are reported by coupling the vacancy effect with configurational entropy, which displays an excellent interface stability against sodium metal and an extraordinary tolerance toward the moist atmosphere, even for water. The optimized electrolyte effectively inhibits the detrimental mixed ion-electron conducting interphase formation, achieving the ultra-stable operation of Na–Na symmetric cell up to 1000 h. Furthermore, the Na<sup>+</sup> diffusion kinetics is obviously enhanced by increasing the Na sites local anisotropy and Na vacancies. Eventually, the assembled TiS<sub>2</sub>//Na<sub>5</sub>Sn ASSSBs deliver a remarkable reversible capacity of 211.6 mAh g<sup>−1</sup> at 0.5C with a long-term cycling performance of 450 cycles at room temperature. More importantly, it achieves a steady running up to 100 cycles at 1C even if this electrolyte is placed in the air with a dew temperature of 13.8 °C for 30 min, the highest values in the state-of-the-art sulfide-based ASSSBs. The well-designed SSEs open a new avenue for realizing the advanced and powerful ASSSBs.","PeriodicalId":111,"journal":{"name":"Advanced Energy Materials","volume":null,"pages":null},"PeriodicalIF":24.4000,"publicationDate":"2024-09-10","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"A Sulfide-Based Solid Electrolyte With High Humid Air Tolerance for Long Lifespan All-Solid-State Sodium Batteries\",\"authors\":\"Yayu Guo, Kai Liu, Cheng Li, Dawei Song, Hongzhou Zhang, Zhenyu Wang, Yufen Yan, Lianqi Zhang, Sheng Dai\",\"doi\":\"10.1002/aenm.202401504\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Sulfide-based superionic conductors present great promise to achieve high energy density and safety for all-solid-state sodium batteries (ASSSBs). However, the poor electrolyte/electrode interface compatibility and humid air stability seriously hinder their deployment in ASSSBs. Herein, a series of high-performance Na<sub>3-□</sub>Sb<sub>1-4x</sub>(SnWCaTi)<sub>x</sub>S<sub>4</sub> sulfide-based solid electrolytes (SSEs) are reported by coupling the vacancy effect with configurational entropy, which displays an excellent interface stability against sodium metal and an extraordinary tolerance toward the moist atmosphere, even for water. The optimized electrolyte effectively inhibits the detrimental mixed ion-electron conducting interphase formation, achieving the ultra-stable operation of Na–Na symmetric cell up to 1000 h. Furthermore, the Na<sup>+</sup> diffusion kinetics is obviously enhanced by increasing the Na sites local anisotropy and Na vacancies. Eventually, the assembled TiS<sub>2</sub>//Na<sub>5</sub>Sn ASSSBs deliver a remarkable reversible capacity of 211.6 mAh g<sup>−1</sup> at 0.5C with a long-term cycling performance of 450 cycles at room temperature. More importantly, it achieves a steady running up to 100 cycles at 1C even if this electrolyte is placed in the air with a dew temperature of 13.8 °C for 30 min, the highest values in the state-of-the-art sulfide-based ASSSBs. The well-designed SSEs open a new avenue for realizing the advanced and powerful ASSSBs.\",\"PeriodicalId\":111,\"journal\":{\"name\":\"Advanced Energy Materials\",\"volume\":null,\"pages\":null},\"PeriodicalIF\":24.4000,\"publicationDate\":\"2024-09-10\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Advanced Energy Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1002/aenm.202401504\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Energy Materials","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1002/aenm.202401504","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

摘要

硫化物基超离子导体在实现全固态钠电池(ASSSB)的高能量密度和安全性方面大有可为。然而,电解质/电极界面兼容性差以及在潮湿空气中的稳定性严重阻碍了它们在全固态钠电池中的应用。本文报告了一系列高性能 Na3-□Sb1-4x(SnWCaTi)xS4 硫化物基固体电解质(SSEs),该电解质将空位效应与构型熵耦合在一起,对金属钠具有极佳的界面稳定性,对潮湿空气具有超强的耐受性,甚至对水也是如此。此外,通过增加 Na 位点的局部各向异性和 Na 空位,Na+ 扩散动力学明显增强。最终,组装好的 TiS2/Na5Sn ASSSB 在 0.5C 温度下可提供 211.6 mAh g-1 的显著可逆容量,在室温下可长期循环 450 次。更重要的是,即使将这种电解质放在露水温度为 13.8 °C 的空气中 30 分钟,它也能在 1C 温度下稳定运行 100 个循环。精心设计的 SSE 为实现先进、功能强大的 ASSSB 开辟了一条新途径。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

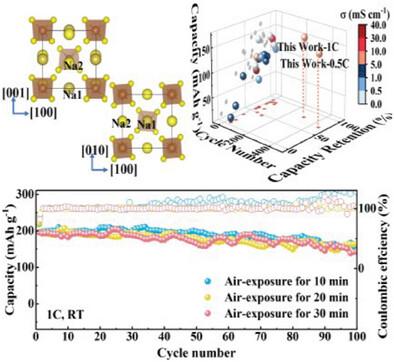

摘要图片

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
A Sulfide-Based Solid Electrolyte With High Humid Air Tolerance for Long Lifespan All-Solid-State Sodium Batteries
Sulfide-based superionic conductors present great promise to achieve high energy density and safety for all-solid-state sodium batteries (ASSSBs). However, the poor electrolyte/electrode interface compatibility and humid air stability seriously hinder their deployment in ASSSBs. Herein, a series of high-performance Na3-□Sb1-4x(SnWCaTi)xS4 sulfide-based solid electrolytes (SSEs) are reported by coupling the vacancy effect with configurational entropy, which displays an excellent interface stability against sodium metal and an extraordinary tolerance toward the moist atmosphere, even for water. The optimized electrolyte effectively inhibits the detrimental mixed ion-electron conducting interphase formation, achieving the ultra-stable operation of Na–Na symmetric cell up to 1000 h. Furthermore, the Na+ diffusion kinetics is obviously enhanced by increasing the Na sites local anisotropy and Na vacancies. Eventually, the assembled TiS2//Na5Sn ASSSBs deliver a remarkable reversible capacity of 211.6 mAh g−1 at 0.5C with a long-term cycling performance of 450 cycles at room temperature. More importantly, it achieves a steady running up to 100 cycles at 1C even if this electrolyte is placed in the air with a dew temperature of 13.8 °C for 30 min, the highest values in the state-of-the-art sulfide-based ASSSBs. The well-designed SSEs open a new avenue for realizing the advanced and powerful ASSSBs.
