通过 Bi 的双重作用操纵关键中间体并抑制氢进化反应,实现高效硝酸到氨和能量转换。

IF 12.2 2区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY Materials Horizons Pub Date : 2024-11-11 DOI:10.1039/d4mh01133c
Chunming Yang, Tingting Wei, Chuantao Wang, Feng Yue, Xiang Li, Huijuan Pang, Xueyan Zheng, Yantu Zhang, Feng Fu
{"title":"通过 Bi 的双重作用操纵关键中间体并抑制氢进化反应,实现高效硝酸到氨和能量转换。","authors":"Chunming Yang, Tingting Wei, Chuantao Wang, Feng Yue, Xiang Li, Huijuan Pang, Xueyan Zheng, Yantu Zhang, Feng Fu","doi":"10.1039/d4mh01133c","DOIUrl":null,"url":null,"abstract":"<p><p>The nitrate reduction reaction (NO<sub>3</sub>RR) is a promising technology for simultaneous treatment of NO<sub>3</sub><sup>-</sup> wastewater and synthetic ammonia. However, the NO<sub>3</sub>RR involves multiple electron and proton transfer processes, and the ammonia selectivity and yield are highly susceptible to the evolution of key intermediate (*NO<sub>2</sub>) and the competing hydrogen evolution reaction (HER). In this study, bismuth (Bi), with a high hydrogen overpotential, is used as an inhibitor of the HER. Meanwhile, the Bi doping CoS<sub>2</sub> (Bi-CoS<sub>2</sub>) can refine the d-band center of CoS<sub>2</sub>, which optimizes the adsorption of *NO<sub>2</sub>, reduces the accumulation of NO<sub>2</sub><sup>-</sup> on the surface of the catalyst and then releases more active sites, thereby enhancing the NO<sub>3</sub>RR activity. This viewpoint is verified by experimental results, density functional theory (DFT) calculations and <i>in situ</i> Raman. Benefitting from the dual roles of Bi, Bi-CoS<sub>2</sub> exhibits a highest NH<sub>3</sub> Faraday Faradaic efficiency (FE) of 87.18%, an ammonia yield rate of 944.64 μg h<sup>-1</sup> cm<sup>-1</sup> and long-term stability at -0.2 V <i>versus</i> the reversible hydrogen electrode (RHE). Furthermore, an assembled Zn-NO<sub>3</sub><sup>-</sup> battery can reach a maximum power density of 16.3 mW cm<sup>-2</sup> and high FE<sub>NH<sub>3</sub></sub> of 95.76%, providing a high-efficiency multifunctional system for nitrate to ammonia and energy conversion.</p>","PeriodicalId":87,"journal":{"name":"Materials Horizons","volume":" ","pages":""},"PeriodicalIF":12.2000,"publicationDate":"2024-11-11","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Manipulating key intermediates and suppressing the hydrogen evolution reaction <i>via</i> dual roles of Bi for high-efficiency nitrate to ammonia and energy conversion.\",\"authors\":\"Chunming Yang, Tingting Wei, Chuantao Wang, Feng Yue, Xiang Li, Huijuan Pang, Xueyan Zheng, Yantu Zhang, Feng Fu\",\"doi\":\"10.1039/d4mh01133c\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><p>The nitrate reduction reaction (NO<sub>3</sub>RR) is a promising technology for simultaneous treatment of NO<sub>3</sub><sup>-</sup> wastewater and synthetic ammonia. However, the NO<sub>3</sub>RR involves multiple electron and proton transfer processes, and the ammonia selectivity and yield are highly susceptible to the evolution of key intermediate (*NO<sub>2</sub>) and the competing hydrogen evolution reaction (HER). In this study, bismuth (Bi), with a high hydrogen overpotential, is used as an inhibitor of the HER. Meanwhile, the Bi doping CoS<sub>2</sub> (Bi-CoS<sub>2</sub>) can refine the d-band center of CoS<sub>2</sub>, which optimizes the adsorption of *NO<sub>2</sub>, reduces the accumulation of NO<sub>2</sub><sup>-</sup> on the surface of the catalyst and then releases more active sites, thereby enhancing the NO<sub>3</sub>RR activity. This viewpoint is verified by experimental results, density functional theory (DFT) calculations and <i>in situ</i> Raman. Benefitting from the dual roles of Bi, Bi-CoS<sub>2</sub> exhibits a highest NH<sub>3</sub> Faraday Faradaic efficiency (FE) of 87.18%, an ammonia yield rate of 944.64 μg h<sup>-1</sup> cm<sup>-1</sup> and long-term stability at -0.2 V <i>versus</i> the reversible hydrogen electrode (RHE). Furthermore, an assembled Zn-NO<sub>3</sub><sup>-</sup> battery can reach a maximum power density of 16.3 mW cm<sup>-2</sup> and high FE<sub>NH<sub>3</sub></sub> of 95.76%, providing a high-efficiency multifunctional system for nitrate to ammonia and energy conversion.</p>\",\"PeriodicalId\":87,\"journal\":{\"name\":\"Materials Horizons\",\"volume\":\" \",\"pages\":\"\"},\"PeriodicalIF\":12.2000,\"publicationDate\":\"2024-11-11\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Materials Horizons\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1039/d4mh01133c\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Materials Horizons","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1039/d4mh01133c","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

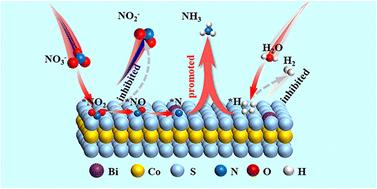

硝酸盐还原反应(NO3RR)是同时处理含 NO3 废水和合成氨的一项前景广阔的技术。然而,NO3RR 涉及多个电子和质子转移过程,氨的选择性和产率极易受到关键中间产物(*NO2)和竞争性氢进化反应(HER)的影响。在本研究中,铋(Bi)具有很高的氢过电位,被用作氢进化反应的抑制剂。同时,Bi 掺杂 CoS2(Bi-CoS2)可以细化 CoS2 的 d 带中心,从而优化对 *NO2 的吸附,减少 NO2- 在催化剂表面的积累,进而释放出更多的活性位点,从而提高 NO3RR 活性。实验结果、密度泛函理论(DFT)计算和原位拉曼都验证了这一观点。得益于铋的双重作用,Bi-CoS2 的 NH3 法拉第效率(FE)高达 87.18%,氨气产率为 944.64 μg h-1 cm-1,并且在-0.2 V 的电压下与可逆氢电极(RHE)相比具有长期稳定性。此外,组装后的 Zn-NO3- 电池最大功率密度可达 16.3 mW cm-2,FENH3 高达 95.76%,为硝酸制氨和能量转换提供了一个高效多功能系统。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
Manipulating key intermediates and suppressing the hydrogen evolution reaction via dual roles of Bi for high-efficiency nitrate to ammonia and energy conversion.

The nitrate reduction reaction (NO3RR) is a promising technology for simultaneous treatment of NO3- wastewater and synthetic ammonia. However, the NO3RR involves multiple electron and proton transfer processes, and the ammonia selectivity and yield are highly susceptible to the evolution of key intermediate (*NO2) and the competing hydrogen evolution reaction (HER). In this study, bismuth (Bi), with a high hydrogen overpotential, is used as an inhibitor of the HER. Meanwhile, the Bi doping CoS2 (Bi-CoS2) can refine the d-band center of CoS2, which optimizes the adsorption of *NO2, reduces the accumulation of NO2- on the surface of the catalyst and then releases more active sites, thereby enhancing the NO3RR activity. This viewpoint is verified by experimental results, density functional theory (DFT) calculations and in situ Raman. Benefitting from the dual roles of Bi, Bi-CoS2 exhibits a highest NH3 Faraday Faradaic efficiency (FE) of 87.18%, an ammonia yield rate of 944.64 μg h-1 cm-1 and long-term stability at -0.2 V versus the reversible hydrogen electrode (RHE). Furthermore, an assembled Zn-NO3- battery can reach a maximum power density of 16.3 mW cm-2 and high FENH3 of 95.76%, providing a high-efficiency multifunctional system for nitrate to ammonia and energy conversion.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
