用于高性能偏振敏感光电探测器的2D超薄β-Bi2O3晶体的表面辅助钝化生长

IF 26.8 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY Advanced Materials Pub Date : 2024-12-02 DOI:10.1002/adma.202410163
Yang Guo, Qing Zhang, Zebin Ren, Lin Li, Weijie Ma, Xianfeng Shen, Jichen Dong, Rongjin Li, Dechao Geng, Wenping Hu
{"title":"用于高性能偏振敏感光电探测器的2D超薄β-Bi2O3晶体的表面辅助钝化生长","authors":"Yang Guo,&nbsp;Qing Zhang,&nbsp;Zebin Ren,&nbsp;Lin Li,&nbsp;Weijie Ma,&nbsp;Xianfeng Shen,&nbsp;Jichen Dong,&nbsp;Rongjin Li,&nbsp;Dechao Geng,&nbsp;Wenping Hu","doi":"10.1002/adma.202410163","DOIUrl":null,"url":null,"abstract":"<p>2D nonlayered materials (NLMs) have garnered considerable attention due to unique surface structure and bright application prospect. However, owing to the strong interatomic forces caused by intrinsic isotropic chemical bonds in all directions, the direct synthesis of ultrathin and large area 2D NLMs remains a tremendous challenge. Here, the surface-assisted passivation growth strategy is designed to synthesize ultrathin and large size <i>β</i>-Bi<sub>2</sub>O<sub>3</sub> crystals with the thickness down to 0.77 nm and the lateral size up to 163 µm. These results are primarily ascribed to the bonding between Se atoms and the unsaturated Bi atoms on the surface of <i>β</i>-Bi<sub>2</sub>O<sub>3</sub>, resulting in the surface passivation and promoting the obtaining of ultrathin <i>β</i>-Bi<sub>2</sub>O<sub>3</sub>. Strikingly, the photodetectors based on <i>β</i>-Bi<sub>2</sub>O<sub>3</sub> flakes exhibit a high photoresponsivity of 71.91 A W<sup>−1</sup>, an excellent detectivity of 6.09 × 10<sup>13</sup> Jones, a remarkable external quantum efficiency of 2.4 × 10<sup>4</sup>%, an outstanding anisotropic photodetection and excellent UV imaging capability at 365 nm. This work sheds light on the synthesis of 2D ultrathin NLMs and promotes their applications in multifunctional optoelectronics.</p>","PeriodicalId":114,"journal":{"name":"Advanced Materials","volume":"37 3","pages":""},"PeriodicalIF":26.8000,"publicationDate":"2024-12-02","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Surface-Assisted Passivation Growth of 2D Ultrathin β-Bi2O3 Crystals for High-Performance Polarization-Sensitive Photodetectors\",\"authors\":\"Yang Guo,&nbsp;Qing Zhang,&nbsp;Zebin Ren,&nbsp;Lin Li,&nbsp;Weijie Ma,&nbsp;Xianfeng Shen,&nbsp;Jichen Dong,&nbsp;Rongjin Li,&nbsp;Dechao Geng,&nbsp;Wenping Hu\",\"doi\":\"10.1002/adma.202410163\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>2D nonlayered materials (NLMs) have garnered considerable attention due to unique surface structure and bright application prospect. However, owing to the strong interatomic forces caused by intrinsic isotropic chemical bonds in all directions, the direct synthesis of ultrathin and large area 2D NLMs remains a tremendous challenge. Here, the surface-assisted passivation growth strategy is designed to synthesize ultrathin and large size <i>β</i>-Bi<sub>2</sub>O<sub>3</sub> crystals with the thickness down to 0.77 nm and the lateral size up to 163 µm. These results are primarily ascribed to the bonding between Se atoms and the unsaturated Bi atoms on the surface of <i>β</i>-Bi<sub>2</sub>O<sub>3</sub>, resulting in the surface passivation and promoting the obtaining of ultrathin <i>β</i>-Bi<sub>2</sub>O<sub>3</sub>. Strikingly, the photodetectors based on <i>β</i>-Bi<sub>2</sub>O<sub>3</sub> flakes exhibit a high photoresponsivity of 71.91 A W<sup>−1</sup>, an excellent detectivity of 6.09 × 10<sup>13</sup> Jones, a remarkable external quantum efficiency of 2.4 × 10<sup>4</sup>%, an outstanding anisotropic photodetection and excellent UV imaging capability at 365 nm. This work sheds light on the synthesis of 2D ultrathin NLMs and promotes their applications in multifunctional optoelectronics.</p>\",\"PeriodicalId\":114,\"journal\":{\"name\":\"Advanced Materials\",\"volume\":\"37 3\",\"pages\":\"\"},\"PeriodicalIF\":26.8000,\"publicationDate\":\"2024-12-02\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Advanced Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://advanced.onlinelibrary.wiley.com/doi/10.1002/adma.202410163\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Materials","FirstCategoryId":"88","ListUrlMain":"https://advanced.onlinelibrary.wiley.com/doi/10.1002/adma.202410163","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

二维非层状材料因其独特的表面结构和广阔的应用前景而受到广泛关注。然而,由于各向同性化学键在各个方向上产生强大的原子间作用力,直接合成超薄大面积二维nlm仍然是一个巨大的挑战。本文采用表面辅助钝化生长策略,制备了厚度可达0.77 nm、横向尺寸可达163µm的超薄大尺寸β-Bi2O3晶体。这些结果主要归因于β-Bi2O3表面的Se原子与不饱和Bi原子之间的键合,导致表面钝化,促进超薄β-Bi2O3的获得。引人注目的是,基于β-Bi2O3薄片的光电探测器具有71.91 a W−1的高光响应率,6.09 × 1013 Jones的出色探测率,2.4 × 104%的出色外量子效率,出色的各向异性光电探测和出色的365 nm紫外成像能力。这项工作为二维超薄nlm的合成提供了新的思路,并促进了其在多功能光电子学中的应用。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

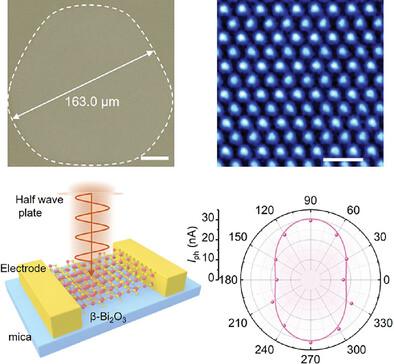

摘要图片

摘要图片

摘要图片

摘要图片

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
Surface-Assisted Passivation Growth of 2D Ultrathin β-Bi2O3 Crystals for High-Performance Polarization-Sensitive Photodetectors

2D nonlayered materials (NLMs) have garnered considerable attention due to unique surface structure and bright application prospect. However, owing to the strong interatomic forces caused by intrinsic isotropic chemical bonds in all directions, the direct synthesis of ultrathin and large area 2D NLMs remains a tremendous challenge. Here, the surface-assisted passivation growth strategy is designed to synthesize ultrathin and large size β-Bi2O3 crystals with the thickness down to 0.77 nm and the lateral size up to 163 µm. These results are primarily ascribed to the bonding between Se atoms and the unsaturated Bi atoms on the surface of β-Bi2O3, resulting in the surface passivation and promoting the obtaining of ultrathin β-Bi2O3. Strikingly, the photodetectors based on β-Bi2O3 flakes exhibit a high photoresponsivity of 71.91 A W−1, an excellent detectivity of 6.09 × 1013 Jones, a remarkable external quantum efficiency of 2.4 × 104%, an outstanding anisotropic photodetection and excellent UV imaging capability at 365 nm. This work sheds light on the synthesis of 2D ultrathin NLMs and promotes their applications in multifunctional optoelectronics.
