Multi-Scale Robotics: A Numerical Investigation on Mobile Micro-Tweezers for Micro-Manipulation with Extreme Requirements.

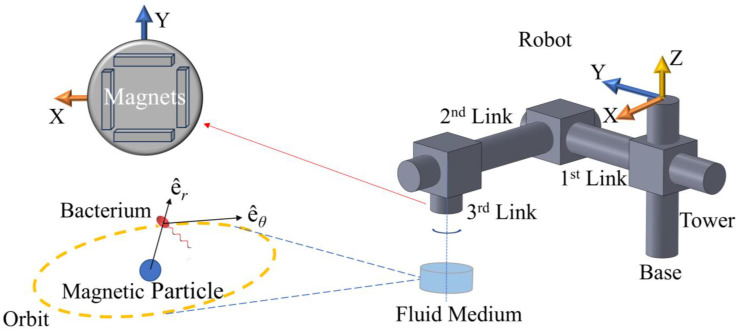

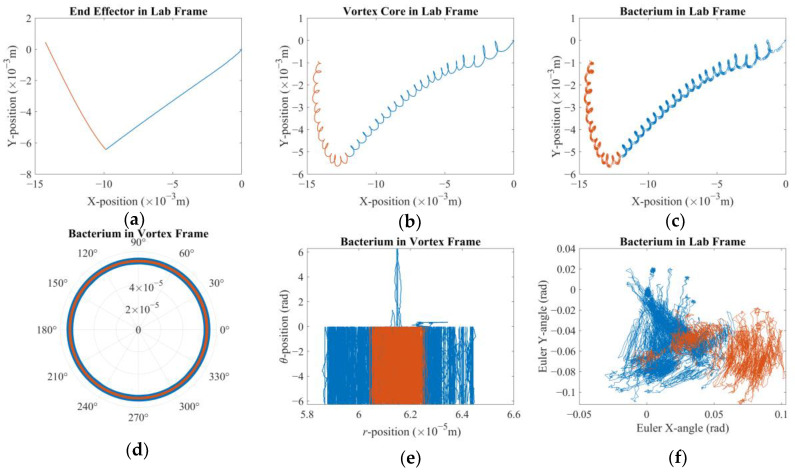

An automated micro-tweezers system with a flexible workspace would benefit the intelligent sorting of live cells. Such micro-tweezers could employ a forced vortex strong enough to capture a single cell. Furthermore, addressable control of the position to the vortex would constitute a robotic system. In this study, a spherical micro-object composed of super paramagnetic particles tightly packed in a non-magnetic resin is rotated with a combined magnetic field of permanent magnets. The said magnetic field is articulated by an open-kinematic chain controlled with a simple adaptive PI-control scheme. A vortex is formed as the spherical particle, assumed to be submerged under the surface of fluid, and follows the position and orientation of the external magnetic field. This forced vortex induces a radial pressure gradient that captures the live cell orbiting around the spherical object combined with the inertial effects. Here, a comprehensive mathematical model is presented to reflect on the dynamics of such micro-tweezer systems. Numerical results demonstrate that it is theoretically possible to capture and tow a bacterium cell while meeting extreme tracking references for motion control. Magnetic and fluid forces on the spherical particle traverse the vortex and the bacterium cell, with orbiting and sporadic collusion of the bacterium cell around the spherical particle, and the positions of the end-effector, i.e., the magnets, are analyzed.
