微交联聚硅氧烷提高聚碳酸酯的缺口冲击强度和阻燃性

IF 14.2 1区 材料科学 Q1 ENGINEERING, MULTIDISCIPLINARY Composites Part B: Engineering Pub Date : 2025-05-01 Epub Date: 2025-02-10 DOI:10.1016/j.compositesb.2025.112256
Yangming Zou, Jingfan Zhang, Xiaorong Guo, Yujie Kang, Xin Tong, Wei Liu, Xinqi Di, Jun Sun, Hongfei Li, Xiaoyu Gu, Sheng Zhang
{"title":"微交联聚硅氧烷提高聚碳酸酯的缺口冲击强度和阻燃性","authors":"Yangming Zou,&nbsp;Jingfan Zhang,&nbsp;Xiaorong Guo,&nbsp;Yujie Kang,&nbsp;Xin Tong,&nbsp;Wei Liu,&nbsp;Xinqi Di,&nbsp;Jun Sun,&nbsp;Hongfei Li,&nbsp;Xiaoyu Gu,&nbsp;Sheng Zhang","doi":"10.1016/j.compositesb.2025.112256","DOIUrl":null,"url":null,"abstract":"<div><div>Polycarbonate (PC) is a crucial engineering thermoplastic, but its impact strength is highly sensitive to notches, with even minor ones leading to significant reductions in mechanical performance. In this work, a crosslinked polysiloxane (VMQ) was synthesized and incorporated into PC to enhance both its toughness and flame retardancy. The introduction of VMQ greatly improved the notched impact strength and flame retardancy of PC. The addition of 5 wt% VMQ significantly enhanced the notched impact strength from 8.8 to 75.4 kJ/m<sup>2</sup>, representing an improvement of 756.8 %. Furthermore, the elongation at break and tensile toughness increased by 61.2 % and 46.5 %, respectively. Notably, even at −10 °C, the enhanced notched impact strength was almost fully retained. Additionally, the PC/5%VMQ composite achieved a UL-94 V-0 rating, with a limiting oxygen index (LOI) of 28.7 %, a 38.2 % reduction in peak heat release rate (PHRR), and a 13.9 % decrease in total smoke production (TSP). The toughening and flame-retardant mechanisms of VMQ were thoroughly investigated. This work provides an innovative approach to simultaneously improve the flame retardancy and toughness of PC.</div></div>","PeriodicalId":10660,"journal":{"name":"Composites Part B: Engineering","volume":"296 ","pages":"Article 112256"},"PeriodicalIF":14.2000,"publicationDate":"2025-05-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Enhancement of notched impact strength and flame retardancy in polycarbonate via micro-crosslinked polysiloxane\",\"authors\":\"Yangming Zou,&nbsp;Jingfan Zhang,&nbsp;Xiaorong Guo,&nbsp;Yujie Kang,&nbsp;Xin Tong,&nbsp;Wei Liu,&nbsp;Xinqi Di,&nbsp;Jun Sun,&nbsp;Hongfei Li,&nbsp;Xiaoyu Gu,&nbsp;Sheng Zhang\",\"doi\":\"10.1016/j.compositesb.2025.112256\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>Polycarbonate (PC) is a crucial engineering thermoplastic, but its impact strength is highly sensitive to notches, with even minor ones leading to significant reductions in mechanical performance. In this work, a crosslinked polysiloxane (VMQ) was synthesized and incorporated into PC to enhance both its toughness and flame retardancy. The introduction of VMQ greatly improved the notched impact strength and flame retardancy of PC. The addition of 5 wt% VMQ significantly enhanced the notched impact strength from 8.8 to 75.4 kJ/m<sup>2</sup>, representing an improvement of 756.8 %. Furthermore, the elongation at break and tensile toughness increased by 61.2 % and 46.5 %, respectively. Notably, even at −10 °C, the enhanced notched impact strength was almost fully retained. Additionally, the PC/5%VMQ composite achieved a UL-94 V-0 rating, with a limiting oxygen index (LOI) of 28.7 %, a 38.2 % reduction in peak heat release rate (PHRR), and a 13.9 % decrease in total smoke production (TSP). The toughening and flame-retardant mechanisms of VMQ were thoroughly investigated. This work provides an innovative approach to simultaneously improve the flame retardancy and toughness of PC.</div></div>\",\"PeriodicalId\":10660,\"journal\":{\"name\":\"Composites Part B: Engineering\",\"volume\":\"296 \",\"pages\":\"Article 112256\"},\"PeriodicalIF\":14.2000,\"publicationDate\":\"2025-05-01\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Composites Part B: Engineering\",\"FirstCategoryId\":\"5\",\"ListUrlMain\":\"https://www.sciencedirect.com/science/article/pii/S1359836825001465\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"2025/2/10 0:00:00\",\"PubModel\":\"Epub\",\"JCR\":\"Q1\",\"JCRName\":\"ENGINEERING, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Composites Part B: Engineering","FirstCategoryId":"5","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S1359836825001465","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2025/2/10 0:00:00","PubModel":"Epub","JCR":"Q1","JCRName":"ENGINEERING, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

聚碳酸酯(PC)是一种重要的工程热塑性塑料,但其冲击强度对缺口高度敏感,即使是很小的缺口也会导致机械性能的显著降低。本文合成了一种交联聚硅氧烷(VMQ),并将其掺入PC中,以提高其韧性和阻燃性。VMQ的引入大大提高了PC的缺口冲击强度和阻燃性。添加5 wt% VMQ后,缺口冲击强度从8.8 kJ/m2显著提高至75.4 kJ/m2,提高756.8%。断裂伸长率和拉伸韧性分别提高了61.2%和46.5%。值得注意的是,即使在- 10°C时,也几乎完全保留了增强的缺口冲击强度。此外,PC/5%VMQ复合材料达到UL-94 V-0等级,极限氧指数(LOI)为28.7%,峰值放热率(PHRR)降低38.2%,总产烟量(TSP)降低13.9%。深入研究了VMQ的增韧和阻燃机理。这项工作为同时提高PC的阻燃性和韧性提供了一条创新途径。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

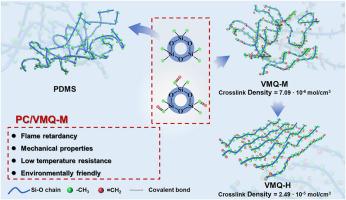

摘要图片

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
Enhancement of notched impact strength and flame retardancy in polycarbonate via micro-crosslinked polysiloxane
Polycarbonate (PC) is a crucial engineering thermoplastic, but its impact strength is highly sensitive to notches, with even minor ones leading to significant reductions in mechanical performance. In this work, a crosslinked polysiloxane (VMQ) was synthesized and incorporated into PC to enhance both its toughness and flame retardancy. The introduction of VMQ greatly improved the notched impact strength and flame retardancy of PC. The addition of 5 wt% VMQ significantly enhanced the notched impact strength from 8.8 to 75.4 kJ/m2, representing an improvement of 756.8 %. Furthermore, the elongation at break and tensile toughness increased by 61.2 % and 46.5 %, respectively. Notably, even at −10 °C, the enhanced notched impact strength was almost fully retained. Additionally, the PC/5%VMQ composite achieved a UL-94 V-0 rating, with a limiting oxygen index (LOI) of 28.7 %, a 38.2 % reduction in peak heat release rate (PHRR), and a 13.9 % decrease in total smoke production (TSP). The toughening and flame-retardant mechanisms of VMQ were thoroughly investigated. This work provides an innovative approach to simultaneously improve the flame retardancy and toughness of PC.
