高可靠性锂金属电池用Li1.3Al0.3Ti1.7(PO4)3固态电解质原位热聚合界面优化

IF 6.9 2区 材料科学 Q2 CHEMISTRY, PHYSICAL Applied Surface Science Pub Date : 2025-05-30 Epub Date: 2025-02-18 DOI:10.1016/j.apsusc.2025.162723
Ting-Ting Chen, Yu-Hang Zhang, Yi-Wei Fan, Xin Jiang, Peng-Fei Wang, Yuhan Wu, Fa-Nian Shi
{"title":"高可靠性锂金属电池用Li1.3Al0.3Ti1.7(PO4)3固态电解质原位热聚合界面优化","authors":"Ting-Ting Chen,&nbsp;Yu-Hang Zhang,&nbsp;Yi-Wei Fan,&nbsp;Xin Jiang,&nbsp;Peng-Fei Wang,&nbsp;Yuhan Wu,&nbsp;Fa-Nian Shi","doi":"10.1016/j.apsusc.2025.162723","DOIUrl":null,"url":null,"abstract":"<div><div>The interface issues between solid-state electrolytes and electrodes severely hamper the development of solid-state lithium metal batteries. Li<sub>1.3</sub>Al<sub>0.3</sub>Ti<sub>1.7</sub>(PO<sub>4</sub>)<sub>3</sub> (LATP) is a competitive candidate among solid-state electrolytes due to its high ionic conductivity, air stability and low-cost. Nevertheless, the poor contact at electrolyte/electrode surface as well as the incompatibility between LATP and lithium metal obstruct its practical application. Herein, a buffer layer is designed on both sides of LATP to improve the interfacial contact and inhibit the side reaction occurs at the surface of Li anode. The <em>in-situ</em> formed interphase is a network structure composed of methyl methacrylate (MMA) and tetraethylene glycol dimethacrylate (TEGDMA), which can be triggered by thermal polymerization. The optimized interface enables continuous migration of lithium ions, thereby facilitating the dynamics of cations across the electrolyte and electrode interface. By this modification, the Li||Li symmetric cells assembled by the final product demonstrate high plating/stripping reversibility, and the Li||LiFePO<sub>4</sub> cells can deliver a discharge capacity of 161 mAh g<sup>−1</sup> at 0.1 C. This study proposes a promising strategy for interfacial design and heralds an encouraging prospect for inorganic solid-state electrolytes in reliable utilization.</div></div>","PeriodicalId":247,"journal":{"name":"Applied Surface Science","volume":"692 ","pages":"Article 162723"},"PeriodicalIF":6.9000,"publicationDate":"2025-05-30","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Interfacial optimization of Li1.3Al0.3Ti1.7(PO4)3 based solid-state electrolyte by in-situ thermal polymerization for high reliability lithium metal batteries\",\"authors\":\"Ting-Ting Chen,&nbsp;Yu-Hang Zhang,&nbsp;Yi-Wei Fan,&nbsp;Xin Jiang,&nbsp;Peng-Fei Wang,&nbsp;Yuhan Wu,&nbsp;Fa-Nian Shi\",\"doi\":\"10.1016/j.apsusc.2025.162723\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>The interface issues between solid-state electrolytes and electrodes severely hamper the development of solid-state lithium metal batteries. Li<sub>1.3</sub>Al<sub>0.3</sub>Ti<sub>1.7</sub>(PO<sub>4</sub>)<sub>3</sub> (LATP) is a competitive candidate among solid-state electrolytes due to its high ionic conductivity, air stability and low-cost. Nevertheless, the poor contact at electrolyte/electrode surface as well as the incompatibility between LATP and lithium metal obstruct its practical application. Herein, a buffer layer is designed on both sides of LATP to improve the interfacial contact and inhibit the side reaction occurs at the surface of Li anode. The <em>in-situ</em> formed interphase is a network structure composed of methyl methacrylate (MMA) and tetraethylene glycol dimethacrylate (TEGDMA), which can be triggered by thermal polymerization. The optimized interface enables continuous migration of lithium ions, thereby facilitating the dynamics of cations across the electrolyte and electrode interface. By this modification, the Li||Li symmetric cells assembled by the final product demonstrate high plating/stripping reversibility, and the Li||LiFePO<sub>4</sub> cells can deliver a discharge capacity of 161 mAh g<sup>−1</sup> at 0.1 C. This study proposes a promising strategy for interfacial design and heralds an encouraging prospect for inorganic solid-state electrolytes in reliable utilization.</div></div>\",\"PeriodicalId\":247,\"journal\":{\"name\":\"Applied Surface Science\",\"volume\":\"692 \",\"pages\":\"Article 162723\"},\"PeriodicalIF\":6.9000,\"publicationDate\":\"2025-05-30\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Applied Surface Science\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://www.sciencedirect.com/science/article/pii/S0169433225004374\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"2025/2/18 0:00:00\",\"PubModel\":\"Epub\",\"JCR\":\"Q2\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Applied Surface Science","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0169433225004374","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2025/2/18 0:00:00","PubModel":"Epub","JCR":"Q2","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

摘要

固态电解质与电极之间的界面问题严重阻碍了固态锂金属电池的发展。Li1.3Al0.3Ti1.7(PO4)3 (LATP)因其高离子电导率、空气稳定性和低成本而成为固态电解质的竞争对象。然而,电解质/电极表面接触不良以及与锂金属的不相容性阻碍了其实际应用。本文在LATP的两侧设计了缓冲层,以改善界面接触,抑制Li阳极表面的副反应。原位形成的界面相是由甲基丙烯酸甲酯(MMA)和四乙二醇二甲基丙烯酸酯(TEGDMA)组成的网状结构,可以通过热聚合引发。优化的界面使锂离子能够连续迁移,从而促进阳离子在电解质和电极界面上的动力学。通过这种修饰,由最终产品组装的Li||Li对称电池显示出高的镀/剥离可变性,Li||LiFePO4电池在0.1C下的放电容量可达161 mAh g−1。本研究提出了一种有前途的界面设计策略,并预示着无机固态电解质可靠利用的令人鼓舞的前景。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

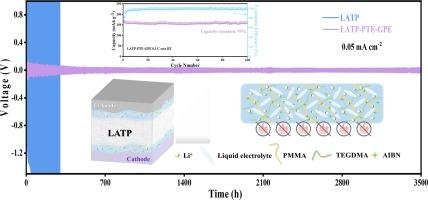

摘要图片

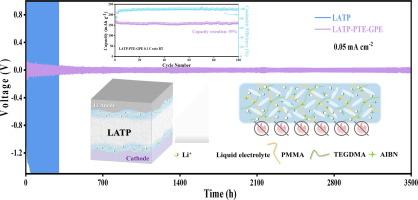

摘要图片

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
Interfacial optimization of Li1.3Al0.3Ti1.7(PO4)3 based solid-state electrolyte by in-situ thermal polymerization for high reliability lithium metal batteries
The interface issues between solid-state electrolytes and electrodes severely hamper the development of solid-state lithium metal batteries. Li1.3Al0.3Ti1.7(PO4)3 (LATP) is a competitive candidate among solid-state electrolytes due to its high ionic conductivity, air stability and low-cost. Nevertheless, the poor contact at electrolyte/electrode surface as well as the incompatibility between LATP and lithium metal obstruct its practical application. Herein, a buffer layer is designed on both sides of LATP to improve the interfacial contact and inhibit the side reaction occurs at the surface of Li anode. The in-situ formed interphase is a network structure composed of methyl methacrylate (MMA) and tetraethylene glycol dimethacrylate (TEGDMA), which can be triggered by thermal polymerization. The optimized interface enables continuous migration of lithium ions, thereby facilitating the dynamics of cations across the electrolyte and electrode interface. By this modification, the Li||Li symmetric cells assembled by the final product demonstrate high plating/stripping reversibility, and the Li||LiFePO4 cells can deliver a discharge capacity of 161 mAh g−1 at 0.1 C. This study proposes a promising strategy for interfacial design and heralds an encouraging prospect for inorganic solid-state electrolytes in reliable utilization.
求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Applied Surface Science
Applied Surface Science 工程技术-材料科学:膜
CiteScore
12.50
自引率
7.50%
发文量
3393
审稿时长
67 days
期刊介绍: Applied Surface Science covers topics contributing to a better understanding of surfaces, interfaces, nanostructures and their applications. The journal is concerned with scientific research on the atomic and molecular level of material properties determined with specific surface analytical techniques and/or computational methods, as well as the processing of such structures.
