制备高频低介电材料氟化聚芳醚的简便方法。

IF 4.3 3区 化学 Q2 POLYMER SCIENCE Macromolecular Rapid Communications Pub Date : 2025-03-10 DOI:10.1002/marc.202401017
Yinquan Liu, Tianjiao Hu, Jing Sun, Qiang Fang
{"title":"制备高频低介电材料氟化聚芳醚的简便方法。","authors":"Yinquan Liu,&nbsp;Tianjiao Hu,&nbsp;Jing Sun,&nbsp;Qiang Fang","doi":"10.1002/marc.202401017","DOIUrl":null,"url":null,"abstract":"<p>Two fluorinated monomers <b>M1</b> and <b>M2</b> based on pentafluorostyrene, are synthesized via an aromatic nucleophilic substitution reaction (SNAr) at room temperature, with high yields of up to 90%. Subsequently, <b>M1</b> and <b>M2</b> are converted to fluorinated poly(aryl ether)s through thermo-crosslinking. Among the two polymers, cured <b>M2</b> possessing higher fluorine content, demonstrates superior overall performance with a 5% weight loss temperature (<i>T</i><sub>5d</sub>) of 465 °C, a low water uptake of 0.17% (after immersing in boiling water for 72 h), a low dielectric constant (<i>D</i><sub>k</sub>) of 2.46 and dielectric loss (<i>D</i><sub>f</sub>) of 3.65 × 10<sup>−3</sup> at 10 GHz. These properties outperform those of numerous poly(aryl ether)s and commercially available low-dielectric materials. This study provides a facile and effective method for preparing fluorinated poly(aryl ether)s tailored specifically for high-frequency communication applications.</p>","PeriodicalId":205,"journal":{"name":"Macromolecular Rapid Communications","volume":"46 12","pages":""},"PeriodicalIF":4.3000,"publicationDate":"2025-03-10","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"A Facile Method for Preparing Fluorinated Poly(aryl ether)s Toward High-Frequency Low Dielectric Materials\",\"authors\":\"Yinquan Liu,&nbsp;Tianjiao Hu,&nbsp;Jing Sun,&nbsp;Qiang Fang\",\"doi\":\"10.1002/marc.202401017\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>Two fluorinated monomers <b>M1</b> and <b>M2</b> based on pentafluorostyrene, are synthesized via an aromatic nucleophilic substitution reaction (SNAr) at room temperature, with high yields of up to 90%. Subsequently, <b>M1</b> and <b>M2</b> are converted to fluorinated poly(aryl ether)s through thermo-crosslinking. Among the two polymers, cured <b>M2</b> possessing higher fluorine content, demonstrates superior overall performance with a 5% weight loss temperature (<i>T</i><sub>5d</sub>) of 465 °C, a low water uptake of 0.17% (after immersing in boiling water for 72 h), a low dielectric constant (<i>D</i><sub>k</sub>) of 2.46 and dielectric loss (<i>D</i><sub>f</sub>) of 3.65 × 10<sup>−3</sup> at 10 GHz. These properties outperform those of numerous poly(aryl ether)s and commercially available low-dielectric materials. This study provides a facile and effective method for preparing fluorinated poly(aryl ether)s tailored specifically for high-frequency communication applications.</p>\",\"PeriodicalId\":205,\"journal\":{\"name\":\"Macromolecular Rapid Communications\",\"volume\":\"46 12\",\"pages\":\"\"},\"PeriodicalIF\":4.3000,\"publicationDate\":\"2025-03-10\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Macromolecular Rapid Communications\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://onlinelibrary.wiley.com/doi/10.1002/marc.202401017\",\"RegionNum\":3,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"POLYMER SCIENCE\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Macromolecular Rapid Communications","FirstCategoryId":"92","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/marc.202401017","RegionNum":3,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"POLYMER SCIENCE","Score":null,"Total":0}
引用次数: 0

摘要

以五氟苯乙烯为基料,通过芳香亲核取代反应(SNAr)在室温下合成了两种含氟单体M1和M2,产率高达90%。随后,M1和M2通过热交联转化为氟化聚芳基醚。两种聚合物中,氟含量较高的固化M2整体性能优越,失重温度(T5d)为465℃,失重温度(T5d)为5%,吸水率为0.17%(在沸水中浸泡72 h), 10 GHz时介电常数(Dk)为2.46,介电损耗(Df)为3.65 × 10-3。这些性能优于许多聚芳醚和市售的低介电材料。本研究提供了一种简便有效的方法来制备专门用于高频通信应用的氟化聚芳基醚。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

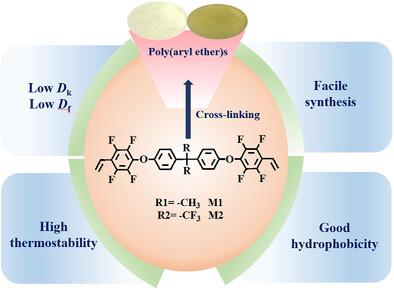

摘要图片

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
A Facile Method for Preparing Fluorinated Poly(aryl ether)s Toward High-Frequency Low Dielectric Materials

Two fluorinated monomers M1 and M2 based on pentafluorostyrene, are synthesized via an aromatic nucleophilic substitution reaction (SNAr) at room temperature, with high yields of up to 90%. Subsequently, M1 and M2 are converted to fluorinated poly(aryl ether)s through thermo-crosslinking. Among the two polymers, cured M2 possessing higher fluorine content, demonstrates superior overall performance with a 5% weight loss temperature (T5d) of 465 °C, a low water uptake of 0.17% (after immersing in boiling water for 72 h), a low dielectric constant (Dk) of 2.46 and dielectric loss (Df) of 3.65 × 10−3 at 10 GHz. These properties outperform those of numerous poly(aryl ether)s and commercially available low-dielectric materials. This study provides a facile and effective method for preparing fluorinated poly(aryl ether)s tailored specifically for high-frequency communication applications.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Macromolecular Rapid Communications
Macromolecular Rapid Communications 工程技术-高分子科学
CiteScore
7.70
自引率
6.50%
发文量
477
审稿时长
1.4 months
期刊介绍: Macromolecular Rapid Communications publishes original research in polymer science, ranging from chemistry and physics of polymers to polymers in materials science and life sciences.
