Pulmonary Nodule Detection from 3D CT Image with a Two-Stage Network

Abstract

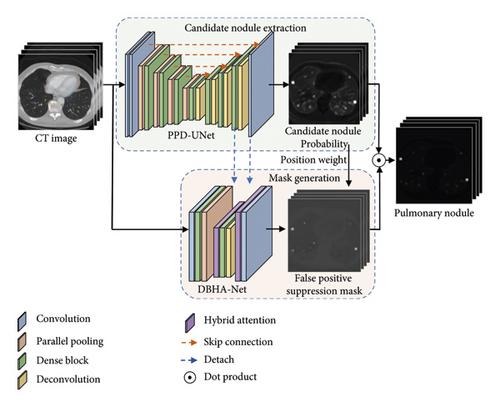

Early detection of lung nodules is an important means of reducing the lung cancer mortality rate. In this paper, we propose a three-dimensional CT image lung nodule detection method based on parallel pooling and dense blocks, which includes two parts, i.e., candidate nodule extraction and false positive suppression. First, a dense U-shaped backbone network with parallel pooling is proposed to obtain the candidate nodule probability map. The parallel pooling structure uses multiple pooling operations for downsampling to capture spatial information comprehensively and address the problem of information loss resulting from maximum and average pooling in the shallow layers. Then, a parasitic network with parallel pooling, dense blocks, and attention modules is designed to suppress false positive nodules. The parasitic network takes the multiscale feature maps of the backbone network as the input. The experimental results demonstrate that the proposed method significantly improves the accuracy of lung nodule detection, achieving a CPM score of 0.91, which outperforms many existing methods.
