Strong, Reversible, Heat‐Activated Adhesion from Liquid Crystal Polymer Networks

IF 4.3 3区 材料科学 Q2 CHEMISTRY, MULTIDISCIPLINARY Advanced Materials Interfaces Pub Date : 2024-09-06 DOI:10.1002/admi.202400488
Hongye Gou, Shenghui Hou, Mohand O. Saed
{"title":"Strong, Reversible, Heat‐Activated Adhesion from Liquid Crystal Polymer Networks","authors":"Hongye Gou, Shenghui Hou, Mohand O. Saed","doi":"10.1002/admi.202400488","DOIUrl":null,"url":null,"abstract":"Smart adhesives that undergo reversible detachment in response to external stimuli can be utilized for clean debonding on demand or for multi‐use purposes. Herein, robust and multi‐use adhesives are developed based on liquid crystal polymer networks. By controlling the glass transition temperatures (Tg), dry liquid crystal adhesives are fabricated with Tg ranging from 14 to 28 °C. These adhesives exhibit low tackiness at room temperature; however, upon heating and annealing, they can be activated, enabling effective deployment. The adhesion tack force increased after annealing from 1 to 7 N for liquid crystal network formulation with a high Tg (28 °C). At the same time, there is no noticeable change for formulations with Tg lower than room temperature. All formulations exhibit high adhesion strength (peel force) in the nematic region (1.0 to 1.6 Nmm<jats:sup>−1</jats:sup>) and low peel force in the isotropic region. Furthermore, the adhesives demonstrate the capability for reuse in more than five heating and cooling peeling cycles and have shown remarkable contamination tolerance to sand, oil, and dirt. Moreover, these adhesives display lap shear strengths comparable to those of traditional PSAs, reaching up to 3 MPa, with clean detachment except for the formulation with low Tg, which exhibited cohesive failure.","PeriodicalId":115,"journal":{"name":"Advanced Materials Interfaces","volume":"44 1","pages":""},"PeriodicalIF":4.3000,"publicationDate":"2024-09-06","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Materials Interfaces","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1002/admi.202400488","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

Smart adhesives that undergo reversible detachment in response to external stimuli can be utilized for clean debonding on demand or for multi‐use purposes. Herein, robust and multi‐use adhesives are developed based on liquid crystal polymer networks. By controlling the glass transition temperatures (Tg), dry liquid crystal adhesives are fabricated with Tg ranging from 14 to 28 °C. These adhesives exhibit low tackiness at room temperature; however, upon heating and annealing, they can be activated, enabling effective deployment. The adhesion tack force increased after annealing from 1 to 7 N for liquid crystal network formulation with a high Tg (28 °C). At the same time, there is no noticeable change for formulations with Tg lower than room temperature. All formulations exhibit high adhesion strength (peel force) in the nematic region (1.0 to 1.6 Nmm−1) and low peel force in the isotropic region. Furthermore, the adhesives demonstrate the capability for reuse in more than five heating and cooling peeling cycles and have shown remarkable contamination tolerance to sand, oil, and dirt. Moreover, these adhesives display lap shear strengths comparable to those of traditional PSAs, reaching up to 3 MPa, with clean detachment except for the formulation with low Tg, which exhibited cohesive failure.

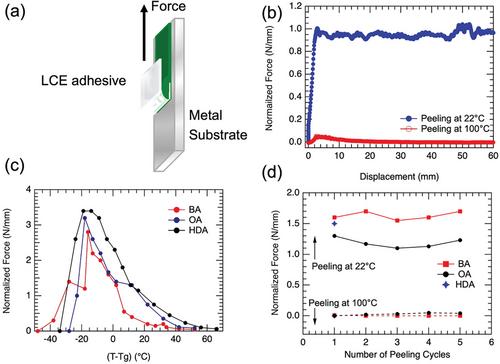

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
液晶聚合物网络的强力、可逆、热激活粘合力
智能粘合剂可在外部刺激下发生可逆分离,可用于按需清洁脱粘或多用途粘合。在此,我们开发了基于液晶聚合物网络的坚固耐用的多用途粘合剂。通过控制玻璃化转变温度(Tg),制备出 Tg 范围为 14 至 28 °C 的干液晶粘合剂。这些粘合剂在室温下粘性较低;但在加热和退火后可被激活,从而实现有效粘合。对于具有高 Tg(28 °C)的液晶网络配方,退火后粘附力从 1 N 增加到 7 N。同时,Tg 低于室温的配方没有明显变化。所有配方在向列区域都表现出较高的粘附强度(剥离力)(1.0 至 1.6 Nmm-1),而在各向同性区域则表现出较低的剥离力。此外,这些粘合剂还能在五个以上的加热和冷却剥离循环中重复使用,并对沙子、油和灰尘具有显著的耐污染性。此外,这些粘合剂的搭接剪切强度可与传统 PSAs 相媲美,最高可达 3 兆帕,除了低 Tg 配方会出现内聚失效外,其他粘合剂都能完全剥离。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
