Pt thin-film resistance thermo detectors with stable interfaces for potential integration in SiC high-temperature pressure sensors.

Abstract

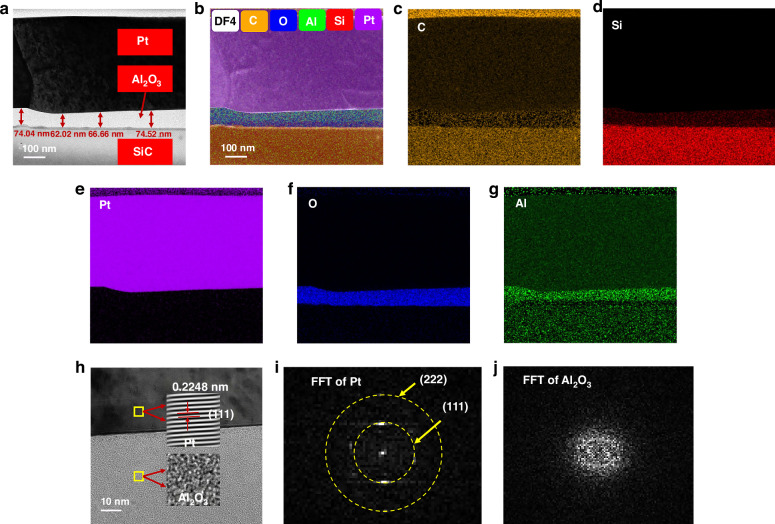

Due to the excellent mechanical, chemical, and electrical properties of third-generation semiconductor silicon carbide (SiC), pressure sensors utilizing this material might be able to operate in extreme environments with temperatures exceeding 300 °C. However, the significant output drift at elevated temperatures challenges the precision and stability of measurements. Real-time in situ temperature monitoring of the pressure sensor chip is highly important for the accurate compensation of the pressure sensor. In this study, we fabricate platinum (Pt) thin-film resistance temperature detectors (RTDs) on a SiC substrate by incorporating aluminum oxide (Al₂O₃) as the transition layer and utilizing aluminum nitride (AlN) grooves for alignment through microfabrication techniques. The composite layers strongly adhere to the substrate at temperatures reaching 950 °C, and the interface of the Al₂O₃/Pt bilayer remains stable at elevated temperatures of approximately 950 °C. This stability contributes to the excellent high-temperature electrical performance of the Pt RTD, enabling it to endure temperatures exceeding 850 °C with good linearity. These characteristics establish a basis for the future integration of Pt RTD in SiC pressure sensors. Furthermore, tests and analyses are conducted on the interfacial diffusion, surface morphological, microstructural, and electrical properties of the Pt films at various annealing temperatures. It can be inferred that the tensile stress and self-diffusion of Pt films lead to the formation of hillocks, ultimately reducing the electrical performance of the Pt thin-film RTD. To increase the upper temperature threshold, steps should be taken to prevent the agglomeration of Pt films.
