Deep learning model using planar whole-body bone scintigraphy for diagnosis of skull base invasion in patients with nasopharyngeal carcinoma.

Abstract

Purpose: This study assesses the reliability of deep learning models based on planar whole-body bone scintigraphy for diagnosing Skull base invasion (SBI) in nasopharyngeal carcinoma (NPC) patients.

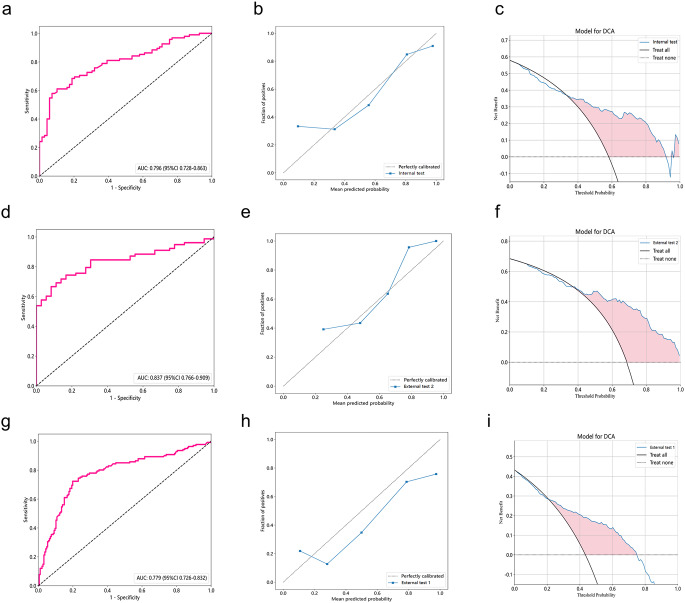

Methods: In this multicenter study, a deep learning model was developed using data from one center with a 7:3 allocation to training and internal test sets, to diagnose SBI in patients newly diagnosed with NPC using planar whole-body bone scintigraphy. Patients were diagnosed based on a composite reference standard incorporating radiologic and follow-up data. Ten different convolutional neural network (CNN) models were applied to both whole-image and partial-image input modes to determine the optimal model for each analysis. Model performance was assessed using the area under the receiver operating characteristic curve (AUC), calibration, decision curve analysis (DCA), and compared with expert assessments by two nuclear medicine physicians.

Results: The best-performing model using partial-body input achieved AUCs of 0.80 (95% CI: 0.73, 0.86) in the internal test set, 0.84 (95% CI: 0.77, 0.91) in the external cohort, and 0.78 (95% CI: 0.73, 0.83) in the treatment test cohort. Calibration curves and DCA confirmed the models' excellent discrimination, calibration, and potential clinical utility across internal and external datasets. The AUCs of both nuclear medicine physicians were lower than those of the best-performing deep learning model in external test set (AUC: 0.75 vs. 0.77 vs. 0.84).

Conclusion: Deep learning models utilizing partial-body input from planar whole-body bone scintigraphy demonstrate high discriminatory power for diagnosing SBI in NPC patients, surpassing experienced nuclear medicine physicians.
