Acoustic black hole effect enhanced micro-manipulator.

Abstract

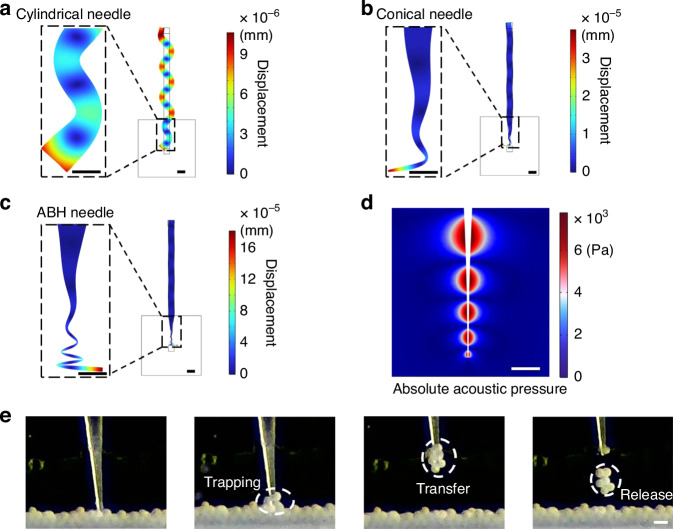

Microparticle manipulation is a critical concern across various fields including microfabrication, flexible electronics and tissue engineering. Acoustic-activated sharp structures have been designed as simple and flexible tools to manipulate microparticles with their good compatibility, fast response, and broad tunability. However, there still lacks rational acoustic-structure design for effective energy concentration at the acoustic-activated sharp structures for microparticle manipulation. Here, we present the acoustic black hole (ABH) effect as enhancement for the acoustic micro-manipulator. It provides great reliability, simplicity and ease of use, supporting custom design of high-throughput patterning modes. Moreover, compared to commonly used configurations, such as cylindrical or conical microneedles, those microneedles with ABH profile exhibit superior acoustic energy focusing at the tip and induce stronger acoustofluidic effects. The average acoustic flow velocity induced by the ABH microneedle is 154 times greater than that of the conical one and 45 times greater than that of the cylindrical microneedle. Besides, the average acoustic radiation force (ARF) produced by the ABH microneedle against acrylic microparticles is about 319 times greater than that of the cylindrical one and 16 times greater than that of the conical one. These results indicate that ABH design significantly enhances microparticle manipulation. We demonstrate this concept with ABH effect enhanced microparticle manipulation and study the parameters influencing its performance including operating frequency, operating voltage and particle diameter. Furthermore, considering the flexibility of this system, we employ it for various patterning and high-throughput microparticle manipulation. This work paves the way for controllable microparticle manipulation, holding great potential for applications in microfabrication and biomedicine.
