Self-powered, highly selective and fast response time ammonia gas sensors based on an rGO/SnO2 nanocomposite

IF 4.1 3区工程技术 Q2 ENGINEERING, ELECTRICAL & ELECTRONIC Sensors and Actuators A-physical Pub Date : 2024-10-09 DOI:10.1016/j.sna.2024.115963

{"title":"Self-powered, highly selective and fast response time ammonia gas sensors based on an rGO/SnO2 nanocomposite","authors":"","doi":"10.1016/j.sna.2024.115963","DOIUrl":null,"url":null,"abstract":"<div><div>Improving the sensitivity and selectivity of ammonia gas sensors at room temperature is essential for the development of self-powered sensors to expand their operational range in various environments. The strategy employed in this study to achieve this goal involves combining reduced graphene oxide (rGO), known for its excellent electrical properties, with SnO<sub>2</sub>, which has been reported to have ammonia-sensing capabilities. For this purpose, the rGO-SnO<sub>2</sub> nanocomposite was synthesized using a two-step pyrolysis and chemical deposition method, and its ammonia gas sensing performance was evaluated. Structural characterization of the synthesized sample was conducted using XRD, BET, SEM, PL, EDX and FTIR techniques. The sensor's response to different concentrations of ammonia gas at room temperature was investigated, and the results showed a 5.2% response at 800 ppm and a low detection limit of 1.43 ppm for this gas. In addition to its high selectivity for ammonia gas, the sensor also demonstrated stability and repeatability.</div></div>","PeriodicalId":21689,"journal":{"name":"Sensors and Actuators A-physical","volume":null,"pages":null},"PeriodicalIF":4.1000,"publicationDate":"2024-10-09","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Sensors and Actuators A-physical","FirstCategoryId":"5","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0924424724009579","RegionNum":3,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"ENGINEERING, ELECTRICAL & ELECTRONIC","Score":null,"Total":0}

引用次数: 0

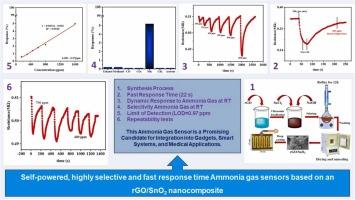

Abstract

Improving the sensitivity and selectivity of ammonia gas sensors at room temperature is essential for the development of self-powered sensors to expand their operational range in various environments. The strategy employed in this study to achieve this goal involves combining reduced graphene oxide (rGO), known for its excellent electrical properties, with SnO₂, which has been reported to have ammonia-sensing capabilities. For this purpose, the rGO-SnO₂ nanocomposite was synthesized using a two-step pyrolysis and chemical deposition method, and its ammonia gas sensing performance was evaluated. Structural characterization of the synthesized sample was conducted using XRD, BET, SEM, PL, EDX and FTIR techniques. The sensor's response to different concentrations of ammonia gas at room temperature was investigated, and the results showed a 5.2% response at 800 ppm and a low detection limit of 1.43 ppm for this gas. In addition to its high selectivity for ammonia gas, the sensor also demonstrated stability and repeatability.

查看原文

微信好友朋友圈 QQ好友复制链接

本刊更多论文

基于 rGO/SnO2 纳米复合材料的自供电、高选择性和快速响应时间氨气传感器

提高室温下氨气传感器的灵敏度和选择性对于开发自供电传感器以扩大其在各种环境下的工作范围至关重要。为实现这一目标，本研究采用的策略是将还原型氧化石墨烯（rGO）与二氧化硫（SnO2）相结合，前者以其出色的电学特性而闻名，而后者据报道具有氨气传感能力。为此，采用热解和化学沉积两步法合成了 rGO-SnO2 纳米复合材料，并对其氨气传感性能进行了评估。利用 XRD、BET、SEM、PL、EDX 和 FTIR 技术对合成样品进行了结构表征。研究了传感器在室温下对不同浓度氨气的响应，结果表明在 800 ppm 浓度下的响应为 5.2%，对氨气的检测限低至 1.43 ppm。除了对氨气具有高选择性外，该传感器还具有稳定性和可重复性。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
