A Planar Darkfield Illuminator for Wide‐Field High‐Contrast Imaging of Specimens in Microfluidic Chips

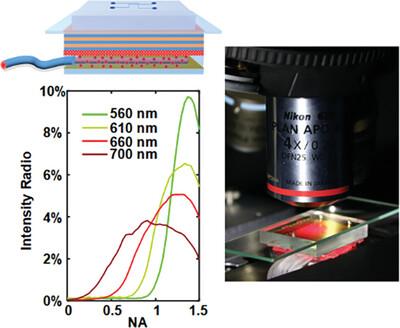

Abstract

Darkfield microscopy is an effective technique and well suited for use involving live and unstained biological samples, where a bulky condenser should be precisely aligned in the optical path to produce a cone of illumination light. Here, a compact darkfield illuminator is invented that has a planar shape and can work at broadband wavelengths. It can be easily incorporated into a conventional microscope as a substrate to produce hollow cones of light for large‐area darkfield illumination, resulting in a high‐contrast high‐sensitivity widefield microscopy images. Taking advantages of its planar and compact structure, this darkfield illuminator is successfully integrated with a microfluidic chip; thus, the actions and reactions of biological and chemical specimens flowing inside micrometer‐sized channels, can be real‐time imaged with high contrast and sensitivity in a large field‐of‐view (FoV). For the first time, the work integrates a compact darkfield illuminator with microfluidic chips, which produces a new platform for applications in biology, chemistry, and biomedical engineering.
