{"title":"Achieving coaxial photoacoustic/ultrasound dual-modality imaging by high-performance Sm: 0.72PMN-0.28PT transparent piezoelectric ceramic","authors":"Wen Gao, Xiatian Wang, Jiaming Zhang, Xue Tian, Fengji Zheng, Pengkun Guo, Haoxing Xu, Rui Xin, Dashi Fu, Yang Qi, Yalin Qin, Kwok-Ho Lam, Xiaojing Gong, Zhihua Xie, Riqiang Lin, Yongcheng Zhang","doi":"10.1016/j.nanoen.2024.110390","DOIUrl":null,"url":null,"abstract":"As a promising new medical imaging method, photoacoustic imaging (PAI) has the advantages of optical resolution and acoustic depth of penetration. The transparent ultrasound transducer (TUT), as a novel device applied to PAI, can combine the laser and acoustic beam coaxially to improve the imaging quality. Transparent piezoelectric materials are the key to developing piezoelectric TUTs. However, due to the birefringence and light scattering caused by ferroelectric domains, it is very hard to prepare transparent piezoelectric materials with both high optical transmittance and excellent piezoelectricity. In this study, 2.5<!-- --> <!-- -->mol% Sm-doped 0.72Pb(Mg<sub>1/3</sub>Nb<sub>2/3)</sub>O<sub>3</sub>-0.28PbTiO<sub>3</sub> (PMN-PT) ceramic with a piezoelectric coefficient <em>d</em><sub>33</sub> of 1460 pC N<sup>-1</sup> and an optical transmission of 69% at Near-Infrared (NIR) is successfully prepared, and its optical, microstructure, ferroelectric and dielectric properties are fully studied. Subsequently, a 3 mm-diameter photoacoustic coaxial probe is fabricated, involving a transparent ultrasound transducer based on the prepared ceramic. The TUT has a center frequency (<em>f</em><sub>c</sub>) of 18.5<!-- --> <!-- -->MHz, a −6<!-- --> <!-- -->dB bandwidth of 20%, and a high effective electromechanical factor (<span><span><math><mspace is=\"true\" width=\"1em\"></mspace><msub is=\"true\"><mrow is=\"true\"><mi is=\"true\">k</mi></mrow><mrow is=\"true\"><mi is=\"true\" mathvariant=\"italic\">eff</mi></mrow></msub><mo is=\"true\" stretchy=\"false\">)</mo></math></span><script type=\"math/mml\"><math><mspace width=\"1em\" is=\"true\"></mspace><msub is=\"true\"><mrow is=\"true\"><mi is=\"true\">k</mi></mrow><mrow is=\"true\"><mi mathvariant=\"italic\" is=\"true\">eff</mi></mrow></msub><mo stretchy=\"false\" is=\"true\">)</mo></math></script></span> of 0.62. In addition, the imaging capability of the miniature probe is firstly confirmed through PA/US dual-modality imaging of <em>in-vivo</em> animals and phantoms, which indicates that the proposed transparent piezoelectric ceramic has great potential for photoacoustic/ultrasound imaging.","PeriodicalId":394,"journal":{"name":"Nano Energy","volume":null,"pages":null},"PeriodicalIF":16.8000,"publicationDate":"2024-10-21","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Nano Energy","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1016/j.nanoen.2024.110390","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0
Abstract

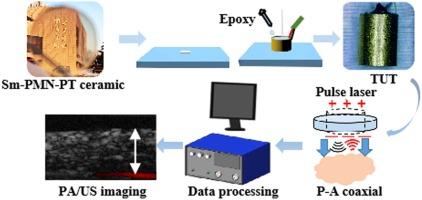

As a promising new medical imaging method, photoacoustic imaging (PAI) has the advantages of optical resolution and acoustic depth of penetration. The transparent ultrasound transducer (TUT), as a novel device applied to PAI, can combine the laser and acoustic beam coaxially to improve the imaging quality. Transparent piezoelectric materials are the key to developing piezoelectric TUTs. However, due to the birefringence and light scattering caused by ferroelectric domains, it is very hard to prepare transparent piezoelectric materials with both high optical transmittance and excellent piezoelectricity. In this study, 2.5 mol% Sm-doped 0.72Pb(Mg1/3Nb2/3)O3-0.28PbTiO3 (PMN-PT) ceramic with a piezoelectric coefficient d33 of 1460 pC N-1 and an optical transmission of 69% at Near-Infrared (NIR) is successfully prepared, and its optical, microstructure, ferroelectric and dielectric properties are fully studied. Subsequently, a 3 mm-diameter photoacoustic coaxial probe is fabricated, involving a transparent ultrasound transducer based on the prepared ceramic. The TUT has a center frequency (fc) of 18.5 MHz, a −6 dB bandwidth of 20%, and a high effective electromechanical factor ( of 0.62. In addition, the imaging capability of the miniature probe is firstly confirmed through PA/US dual-modality imaging of in-vivo animals and phantoms, which indicates that the proposed transparent piezoelectric ceramic has great potential for photoacoustic/ultrasound imaging.
