Highly Efficient Organic/Silicon Hybrid Solar Cells with a MoO3 Capping Layer.

IF 4.4 3区 材料科学 Q2 CHEMISTRY, MULTIDISCIPLINARY Nanomaterials Pub Date : 2024-10-11 DOI:10.3390/nano14201630
Jiahui Chen, Zhangbo Lu, Xiaoting Wang, Yuner Luo, Yun Ma, Gang Lou, Dan Chi, Shihua Huang
{"title":"Highly Efficient Organic/Silicon Hybrid Solar Cells with a MoO<sub>3</sub> Capping Layer.","authors":"Jiahui Chen, Zhangbo Lu, Xiaoting Wang, Yuner Luo, Yun Ma, Gang Lou, Dan Chi, Shihua Huang","doi":"10.3390/nano14201630","DOIUrl":null,"url":null,"abstract":"<p><p>Organic/Si hybrid solar cells have attracted considerable attention for their uncomplicated fabrication process and superior device efficiency, making them a promising candidate for sustainable energy applications. However, the efficient collection and separation of charge carriers at the organic/Si heterojunction interface are primarily hindered by the inadequate work function of poly (3,4-ethylenedioxythiophene): poly (styrenesulfonate) (PEDOT:PSS). Here, the application of a high-work-function MoO<sub>3</sub> film onto the n-Si/PEDOT:PSS surface leads to a notable enhancement in the device's built-in potential. This enhancement results in the creation of an inversion layer near the n-Si surface and facilitates charge separation at the interface. Simultaneously, it inhibits charge recombination at the heterojunction interface. As a result, the champion PEDOT:PSS/Si solar cell, which incorporates a MoO<sub>3</sub> interface layer, demonstrates an efficiency of 16.0% and achieves a high fill factor of 80.8%. These findings provide a straightforward and promising strategy for promoting the collection and transmission of charge carriers at the interface of photovoltaic devices.</p>","PeriodicalId":18966,"journal":{"name":"Nanomaterials","volume":null,"pages":null},"PeriodicalIF":4.4000,"publicationDate":"2024-10-11","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11510610/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Nanomaterials","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.3390/nano14201630","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

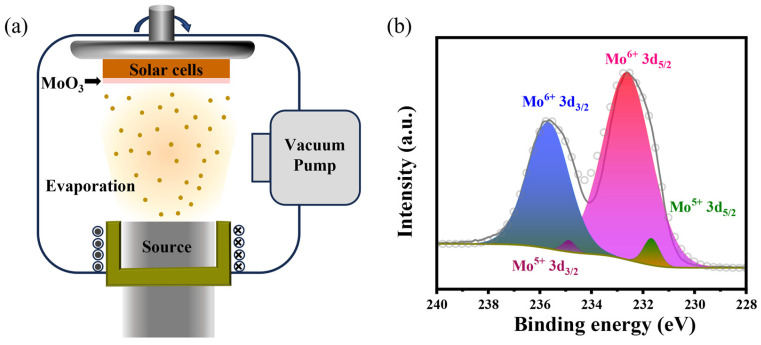

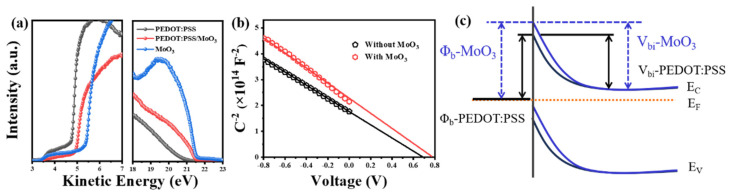

Organic/Si hybrid solar cells have attracted considerable attention for their uncomplicated fabrication process and superior device efficiency, making them a promising candidate for sustainable energy applications. However, the efficient collection and separation of charge carriers at the organic/Si heterojunction interface are primarily hindered by the inadequate work function of poly (3,4-ethylenedioxythiophene): poly (styrenesulfonate) (PEDOT:PSS). Here, the application of a high-work-function MoO3 film onto the n-Si/PEDOT:PSS surface leads to a notable enhancement in the device's built-in potential. This enhancement results in the creation of an inversion layer near the n-Si surface and facilitates charge separation at the interface. Simultaneously, it inhibits charge recombination at the heterojunction interface. As a result, the champion PEDOT:PSS/Si solar cell, which incorporates a MoO3 interface layer, demonstrates an efficiency of 16.0% and achieves a high fill factor of 80.8%. These findings provide a straightforward and promising strategy for promoting the collection and transmission of charge carriers at the interface of photovoltaic devices.

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
具有 MoO3 盖层的高效有机/硅混合太阳能电池。
有机/硅混合太阳能电池因其简便的制造工艺和卓越的器件效率而备受关注,成为可持续能源应用的理想选择。然而,由于聚(3,4-亚乙二氧基噻吩):聚(苯乙烯磺酸)(PEDOT:PSS)的功函数不足,妨碍了电荷载流子在有机/硅异质结界面上的有效收集和分离。在这里,在 n-Si/PEDOT:PSS 表面应用高功函数 MoO3 薄膜可显著提高器件的内置电势。这种增强导致在 n-Si 表面附近形成反转层,并促进了界面上的电荷分离。同时,它还抑制了异质结界面上的电荷重组。因此,含有 MoO3 界面层的冠军 PEDOT:PSS/Si 太阳能电池的效率达到 16.0%,填充因子高达 80.8%。这些发现为促进光伏设备界面上电荷载流子的收集和传输提供了一种直接而有前途的策略。
