A self-adsorption molecule passivated interface enables efficient and stable lithium metal batteries

IF 51.4 1区 化学 Q1 CHEMISTRY, MULTIDISCIPLINARY Chemical Reviews Pub Date : 2024-11-13 DOI:10.1039/d4ee02903h
Gongxun Lu, Xinru Wu, Miaofei Huang, Mengtian Zhang, Zhihong Piao, Xiongwei Zhong, Chuang Li, Yanze Song, Chengshuai Chang, Kuang Yu, Guangmin Zhou
{"title":"A self-adsorption molecule passivated interface enables efficient and stable lithium metal batteries","authors":"Gongxun Lu, Xinru Wu, Miaofei Huang, Mengtian Zhang, Zhihong Piao, Xiongwei Zhong, Chuang Li, Yanze Song, Chengshuai Chang, Kuang Yu, Guangmin Zhou","doi":"10.1039/d4ee02903h","DOIUrl":null,"url":null,"abstract":"Despite the theoretical promise of attaining high energy densities, practical applications of lithium metal batteries (LMBs) remain hindered by the inadequacies of the electrode/electrolyte interface and unsatisfied cycling stability. Herein, a self-adsorption molecule with polar groups was designed and introduced in ether electrolyte, aiming to form a high-density and ordered molecular layer occupying active sites on the electrode surface, while restricting electrolyte molecule penetration into the interface. This self-adsorption molecule favors the formation of a robust anion-rich cathode/anode electrolyte interphase due to the change of the interfacial solvation structure, thus inhibiting solvent decomposition and enhancing interfacial stability. Consequently, the addition of this molecule into low-concentration ether electrolytes notably upgrades the electrochemical performance of the LiNi<small><sub>0.8</sub></small>Co<small><sub>0.1</sub></small>Mn<small><sub>0.1</sub></small>O<small><sub>2</sub></small> (NCM811)||Li battery, which enables a high capacity retention of 87.2% after 250 cycles at 4.5 V. Moreover, the NMC811||Li pouch cells achieve stable cycling over 150 cycles with a capacity retention of 92.9% at a low negative/positive capacity ratio of 2.7 with a lean electrolyte. This interface passivation design strategy provides a promising path toward high-energy, durable, and safe rechargeable LMBs.","PeriodicalId":32,"journal":{"name":"Chemical Reviews","volume":"1 1","pages":""},"PeriodicalIF":51.4000,"publicationDate":"2024-11-13","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Chemical Reviews","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1039/d4ee02903h","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

Despite the theoretical promise of attaining high energy densities, practical applications of lithium metal batteries (LMBs) remain hindered by the inadequacies of the electrode/electrolyte interface and unsatisfied cycling stability. Herein, a self-adsorption molecule with polar groups was designed and introduced in ether electrolyte, aiming to form a high-density and ordered molecular layer occupying active sites on the electrode surface, while restricting electrolyte molecule penetration into the interface. This self-adsorption molecule favors the formation of a robust anion-rich cathode/anode electrolyte interphase due to the change of the interfacial solvation structure, thus inhibiting solvent decomposition and enhancing interfacial stability. Consequently, the addition of this molecule into low-concentration ether electrolytes notably upgrades the electrochemical performance of the LiNi0.8Co0.1Mn0.1O2 (NCM811)||Li battery, which enables a high capacity retention of 87.2% after 250 cycles at 4.5 V. Moreover, the NMC811||Li pouch cells achieve stable cycling over 150 cycles with a capacity retention of 92.9% at a low negative/positive capacity ratio of 2.7 with a lean electrolyte. This interface passivation design strategy provides a promising path toward high-energy, durable, and safe rechargeable LMBs.

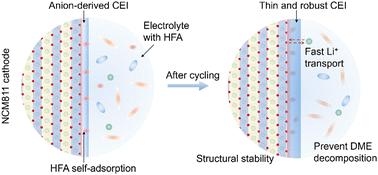

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
自吸附分子钝化界面可实现高效稳定的锂金属电池
尽管理论上有望实现高能量密度,但锂金属电池(LMB)的实际应用仍然受到电极/电解质界面缺陷和循环稳定性不理想的阻碍。在此,我们设计了一种带有极性基团的自吸附分子,并将其引入醚电解质中,旨在形成一个高密度、有序的分子层,占据电极表面的活性位点,同时限制电解质分子渗入界面。由于界面溶解结构的改变,这种自吸附分子有利于形成稳固的富阴离子阴极/阳极电解质相间层,从而抑制溶剂分解,提高界面稳定性。因此,在低浓度醚电解质中添加该分子可显著提高镍钴锰锂电池(NCM811)的电化学性能,使其在 4.5 V 下循环 250 次后的容量保持率高达 87.2%。此外,NMC811||锂袋电池在贫电解液条件下,以 2.7 的低负极/正极容量比实现了 150 次以上的稳定循环,容量保持率高达 92.9%。这种界面钝化设计策略为实现高能、耐用和安全的可充电 LMB 提供了一条前景广阔的道路。
