Material decomposition approaches for monosodium urate (MSU) quantification in gouty arthritis: a (bio)phantom study.

Abstract

Background: Dual-energy computed tomography (DECT) is a noninvasive diagnostic tool for gouty arthritis. This study aimed to compare two postprocessing techniques for monosodium urate (MSU) detection: conventional two-material decomposition and material map-based decomposition.

Methods: A raster phantom and an ex vivo biophantom, embedded with four different MSU concentrations, were scanned in two high-end CT scanners. Scanner 1 used the conventional postprocessing method while scanner 2 employed the material map approach. Volumetric analysis was performed to determine MSU detection, and image quality parameters, such as signal-to-noise ratio (SNR) and contrast-to-noise ratio (CNR), were computed.

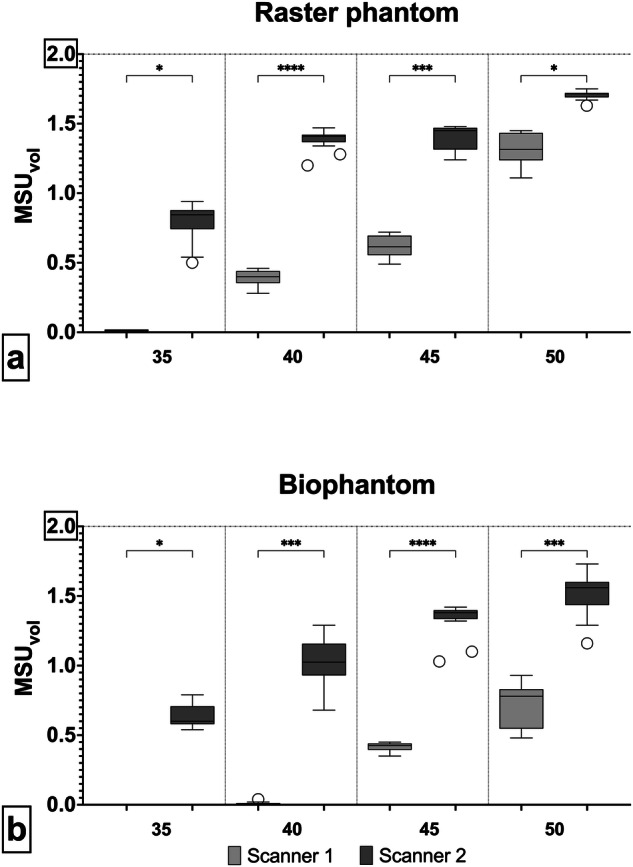

Results: The material map-based method demonstrated superior MSU detection. Specifically, scanner 2 yielded total MSU volumes of 5.29 ± 0.28 mL and 4.52 ± 0.29 mL (mean ± standard deviation) in the raster and biophantom, respectively, versus 2.35 ± 0.23 mL and 1.15 ± 0.17 mL for scanner 1. Radiation dose correlated positively with detection for the conventional scanner, while there was no such correlation for the material map-based decomposition method in the biophantom. Despite its higher detection rate, material map-based decomposition was inferior in terms of SNR, CNR, and artifacts.

Conclusion: While material map-based decomposition resulted in superior MSU detection, it is limited by challenges such as increased artifacts. Our findings highlight the potential of this method for gout diagnosis while underscoring the need for further research to enhance its clinical reliability.

Relevance statement: Advanced postprocessing such as material-map-based two-material decomposition might improve the sensitivity for gouty arthritis in clinical practice, thus, allowing for lower radiation doses or better sensitivity for gouty tophi.

Key points: Dual-energy CT showed limited sensitivity for tophi with low MSU concentrations. Materiel-map-based decomposition increased sensitivity compared to conventional two-material decomposition. The advantages of material-map-based decomposition outweigh lower image quality and increased artifact load.
