Characterization of HZO Films Fabricated by Co-Plasma Atomic Layer Deposition for Ferroelectric Memory Applications.

Abstract

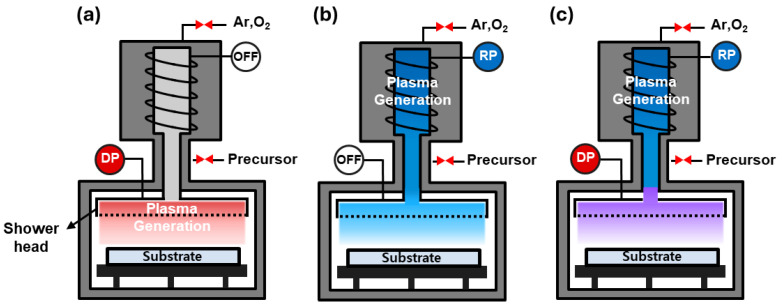

Plasma-enhanced atomic layer deposition (ALD) is a common method for fabricating Hf_0.5Zr_0.5O₂ (HZO) ferroelectric thin films that can be performed using direct-plasma (DP) and remote-plasma (RP) methods. This study proposed co-plasma ALD (CPALD), where DPALD and RPALD are applied simultaneously. HZO films fabricated using this method showed wake-up-free polarization properties, no anti-ferroelectricity, and high fatigue endurance when DPALD and RPALD started simultaneously. To minimize defects in the film that could negatively affect the low polarization properties and fatigue endurance, the direct plasma power was reduced to 75 W. Thus, excellent fatigue endurance for at least 10⁹ cycles was obtained under a high total remanent polarization of 47.3 μC/cm² and an applied voltage of 2.5 V. X-ray photoelectron spectroscopy and transmission electron microscopy were used to investigate the mechanisms responsible for these properties. The HZO films fabricated by CPALD contained few lattice defects (such as nonstoichiometric hafnium, nonlattice oxygen, and residual carbon) and no paraelectric phase (m-phase). This was attributed to the low-carbon residuals in the film, as high-energy activated radicals were supplied by the adsorbed precursors during film formation. This facilitated a smooth transition to the o-phase during heat treatment, which possessed ferroelectric properties.
