Multifunctional Silanol-Based Film-Forming Additive for Stable Zn Anode

IF 19 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY Advanced Functional Materials Pub Date : 2024-11-28 DOI:10.1002/adfm.202417708
Qinghua Xiao, Sidan He, Pengbo Liu, Mengya Ge, Yunsong Li, Yuxuan Zhu, Yuxiao Lin, Chao Wang, Qinghong Wang
{"title":"Multifunctional Silanol-Based Film-Forming Additive for Stable Zn Anode","authors":"Qinghua Xiao,&nbsp;Sidan He,&nbsp;Pengbo Liu,&nbsp;Mengya Ge,&nbsp;Yunsong Li,&nbsp;Yuxuan Zhu,&nbsp;Yuxiao Lin,&nbsp;Chao Wang,&nbsp;Qinghong Wang","doi":"10.1002/adfm.202417708","DOIUrl":null,"url":null,"abstract":"<p>Aqueous zinc ion batteries (AZIBs) have garnered significant attention due to their advantages, including high safety, a straightforward manufacturing process, abundant resource availability, and high theoretical capacity. Nevertheless, the industrial application of AZIBs is impeded by the undesirable growth of dendrites and side reactions on the Zn anode. In this study, [3-(trimethoxysilyl) propyl] urea (3TMS) is utilized as an electrolyte additive to develop a solid/electrolyte interphase (SEI) film on the surface of Zn anode. The in situ formed SEI layer not only prevents side reactions form the direct contact of Zn anode with water but also induces preferential Zn deposition along the (002) crystal plane, suppressing dendrite growth. These synergistic functions enable the Zn anode with ultralong cycle life of over 6000 h at the current density of 1 mA cm<sup>−2</sup> with the areal capacity of 1 mAh cm<sup>−2</sup>, as well as high coulombic efficiency of 99.34% after 750 cycles. Moreover, the Zn//V<sub>2</sub>O<sub>5</sub> full cells with 3TMS additive display a high specific capacity of 114.4 mAh g<sup>−1</sup> at a current density of 0.5 A g<sup>−1</sup> after 1000 cycles. This work provides a simple yet feasible approach to develop stable Zn anode toward high-performance AZIBs.</p>","PeriodicalId":112,"journal":{"name":"Advanced Functional Materials","volume":"35 12","pages":""},"PeriodicalIF":19.0000,"publicationDate":"2024-11-28","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Functional Materials","FirstCategoryId":"88","ListUrlMain":"https://advanced.onlinelibrary.wiley.com/doi/10.1002/adfm.202417708","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

Aqueous zinc ion batteries (AZIBs) have garnered significant attention due to their advantages, including high safety, a straightforward manufacturing process, abundant resource availability, and high theoretical capacity. Nevertheless, the industrial application of AZIBs is impeded by the undesirable growth of dendrites and side reactions on the Zn anode. In this study, [3-(trimethoxysilyl) propyl] urea (3TMS) is utilized as an electrolyte additive to develop a solid/electrolyte interphase (SEI) film on the surface of Zn anode. The in situ formed SEI layer not only prevents side reactions form the direct contact of Zn anode with water but also induces preferential Zn deposition along the (002) crystal plane, suppressing dendrite growth. These synergistic functions enable the Zn anode with ultralong cycle life of over 6000 h at the current density of 1 mA cm−2 with the areal capacity of 1 mAh cm−2, as well as high coulombic efficiency of 99.34% after 750 cycles. Moreover, the Zn//V2O5 full cells with 3TMS additive display a high specific capacity of 114.4 mAh g−1 at a current density of 0.5 A g−1 after 1000 cycles. This work provides a simple yet feasible approach to develop stable Zn anode toward high-performance AZIBs.

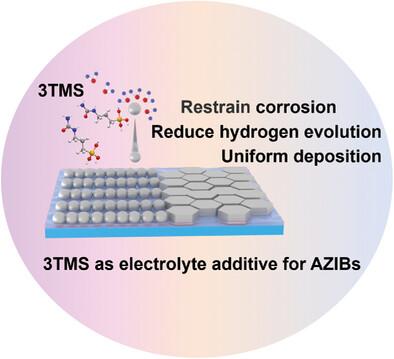

Abstract Image

Abstract Image

Abstract Image

Abstract Image

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
稳定锌阳极用多功能硅醇成膜添加剂
水性锌离子电池(azib)因其安全性高、制造工艺简单、资源丰富、理论容量大等优点而受到广泛关注。然而,azib的工业应用受到Zn阳极上不良枝晶生长和副反应的阻碍。本研究以[3-(三甲氧基硅基)丙基]尿素(3TMS)作为电解质添加剂,在Zn阳极表面形成固体/电解质界面(SEI)膜。原位形成的SEI层不仅可以防止锌阳极与水直接接触的副反应,还可以诱导锌沿(002)晶面优先沉积,抑制枝晶生长。这些协同作用使锌阳极在电流密度为1ma cm - 2、面容量为1mah cm - 2时的超长循环寿命超过6000 h, 750次循环后的库仑效率高达99.34%。此外,在0.5 a g−1的电流密度下,添加3TMS的Zn//V2O5电池在1000次循环后显示出114.4 mAh g−1的高比容量。本研究为制备高性能azib的稳定Zn阳极提供了一种简单可行的方法。
