Constructing Stable Perovskite with Small Molecule Bridge Interface Passivation

IF 24.4 1区 材料科学 Q1 CHEMISTRY, PHYSICAL Advanced Energy Materials Pub Date : 2025-01-05 DOI:10.1002/aenm.202405571
Kai Wang, Bo Yu, Changqing Lin, Ruohe Yao, Huangzhong Yu, Hong Wang
{"title":"Constructing Stable Perovskite with Small Molecule Bridge Interface Passivation","authors":"Kai Wang, Bo Yu, Changqing Lin, Ruohe Yao, Huangzhong Yu, Hong Wang","doi":"10.1002/aenm.202405571","DOIUrl":null,"url":null,"abstract":"The interfaces of each layer in perovskite solar cells (PSCs) have a significant impact on the charge transfer and recombination. Especially, the interface between perovskite and the hole transport layer (HTL) in p-i-n type PSCs significantly affects the contact characteristics between the HTL and perovskite, hindering further improvements in performance and stability. Herein, a small molecule 9-Fluorenylmethoxycarbonyl chloride (9-YT) is introduced as a molecule bridge for p-i-n PSCs, which enhances the interaction between self-assembly molecules (SAMs) and perovskite. The conjugated backbone of 9-YT can interact with the SAM molecule (MeO-2PACz) by <i>π–π</i> stacking reaction. Moreover, 9-YT also improves the interfacial contact through strong interactions with the perovskite, where the carbonyl groups and Cl atoms in 9-YT interact with uncoordinated Pb<sup>2+</sup> in perovskite layer. The incorporation of a molecule bridge is demonstrated to markedly enhance hole extraction at the perovskite/hole transport layer interface, optimize energy level alignment, mitigate interface charge recombination, and passivate the uncoordinated Pb<sup>2+</sup> and defects in the perovskite. Finally, the device treated with 9-YT achieves a power conversion efficiency (PCE) of 24.82%. At the same time, PSCs can still maintain 92.6% of the original PCE after a long-term stability test of 1200 h.","PeriodicalId":111,"journal":{"name":"Advanced Energy Materials","volume":"25 1","pages":""},"PeriodicalIF":24.4000,"publicationDate":"2025-01-05","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Energy Materials","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1002/aenm.202405571","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

Abstract

The interfaces of each layer in perovskite solar cells (PSCs) have a significant impact on the charge transfer and recombination. Especially, the interface between perovskite and the hole transport layer (HTL) in p-i-n type PSCs significantly affects the contact characteristics between the HTL and perovskite, hindering further improvements in performance and stability. Herein, a small molecule 9-Fluorenylmethoxycarbonyl chloride (9-YT) is introduced as a molecule bridge for p-i-n PSCs, which enhances the interaction between self-assembly molecules (SAMs) and perovskite. The conjugated backbone of 9-YT can interact with the SAM molecule (MeO-2PACz) by π–π stacking reaction. Moreover, 9-YT also improves the interfacial contact through strong interactions with the perovskite, where the carbonyl groups and Cl atoms in 9-YT interact with uncoordinated Pb2+ in perovskite layer. The incorporation of a molecule bridge is demonstrated to markedly enhance hole extraction at the perovskite/hole transport layer interface, optimize energy level alignment, mitigate interface charge recombination, and passivate the uncoordinated Pb2+ and defects in the perovskite. Finally, the device treated with 9-YT achieves a power conversion efficiency (PCE) of 24.82%. At the same time, PSCs can still maintain 92.6% of the original PCE after a long-term stability test of 1200 h.

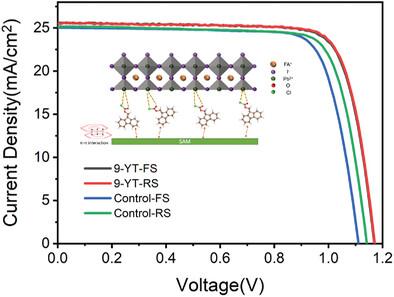

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
用小分子桥界面钝化法制备稳定钙钛矿
钙钛矿太阳能电池(PSCs)中各层的界面对电荷转移和复合有重要影响。特别是,p-i-n型PSCs中钙钛矿与空穴传输层(HTL)之间的界面严重影响了HTL与钙钛矿之间的接触特性,阻碍了性能和稳定性的进一步提高。本文引入了一个小分子9-氟酰甲氧羰基氯(9-YT)作为p-i-n PSCs的分子桥,增强了自组装分子(sam)与钙钛矿之间的相互作用。9-YT的共轭主链可与SAM分子(MeO-2PACz)通过π -π堆积反应相互作用。此外,9-YT还通过与钙钛矿的强相互作用改善了界面接触,其中9-YT中的羰基和Cl原子与钙钛矿层中的不配位Pb2+相互作用。分子桥的加入显著增强了钙钛矿/空穴传输层界面上的空穴萃取,优化了能级排列,减轻了界面电荷复合,钝化了钙钛矿中不配合的Pb2+和缺陷。最后,经过9-YT处理的器件功率转换效率(PCE)达到24.82%。同时,经过1200 h的长期稳定性测试,PSCs仍能保持原始PCE的92.6%。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
