Phytic Acid-Induced Gradient Hydrogels for Highly Sensitive and Broad Range Pressure Sensing

Abstract

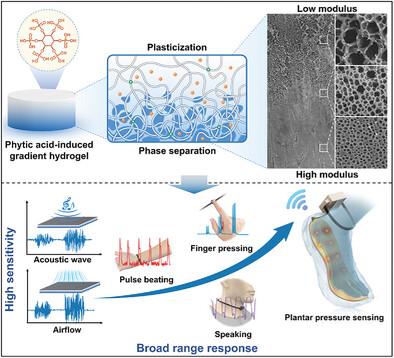

Ionic conductive hydrogels have emerged as an excellent option for constructing dielectric layers of interfacial iontronic sensors. Among these, gradient ionic hydrogels, due to the intrinsic gradient elastic modulus, can achieve a wide range of pressure responses. However, the fabrication of gradient hydrogels with optimal mechanical and sensing properties remains a challenge. In this study, it is discovered first that phytic acid (PA) interacts in remarkably distinct manners (i.e., plasticizing effects and phase separation) with different polymers (i.e., polyacrylamide and polyacrylic acid). This distinctive PA-polymer interacting mechanism is innovatively utilized to construct a modulus gradient ionic hydrogel through a simple precursor solution infiltration approach. The gradient hydrogel-based flexible pressure sensor not only achieves a high sensitivity (9.00 kPa⁻¹, <15 kPa) and a broad sensing range (from ≈3.7 Pa to 1.2 MPa) simultaneously, but also exhibits superior low pressure sensing performance. It successfully recognizes the subtle pressure due to acoustic waves and airflow, as well as the moderate pressure due to speaking and finger pressing and the high magnitude of plantar pressure. In addition, the gradient hydrogel demonstrates remarkable antibacterial properties and biocompatibility. This functional hydrogel with excellent sensing performance and bioactivity exhibits exceptional potential for wearable sensing applications.
