A Low-Power General Matrix Multiplication Accelerator with Sparse Weight-and-Output Stationary Dataflow.

Abstract

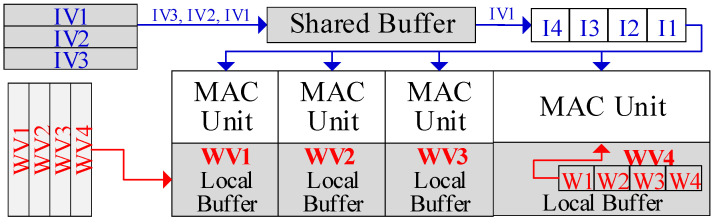

General matrix multiplication (GEMM) in machine learning involves massive computation and data movement, which restricts its deployment on resource-constrained devices. Although data reuse can reduce data movement during GEMM processing, current approaches fail to fully exploit its potential. This work introduces a sparse GEMM accelerator with a weight-and-output stationary (WOS) dataflow and a distributed buffer architecture. It processes GEMM in a compressed format and eliminates on-chip transfers of both weights and partial sums. Furthermore, to map the compressed GEMM of various sizes onto the accelerator, an adaptable mapping scheme is designed. However, the irregular sparsity of weight matrices makes it difficult to store them in local buffers with the compressed format; denser vectors can exceed the buffer capacity, while sparser vectors may lead to the underutilization of buffers. To address this complication, this work also proposes an offline sparsity-aware shuffle strategy for weights, which balances the utilization of distributed buffers and minimizes buffer waste. Finally, a low-cost sparse computing method is applied to the WOS dataflow with globally shared inputs to achieve high computing throughput. Experiments with an FPGA show that the proposed accelerator achieves 1.73× better computing efficiency and 1.36× higher energy efficiency than existing approaches.
