Electric Conductivity Transitions of Water-Absorbable Polybenzimidazole Films.

Abstract

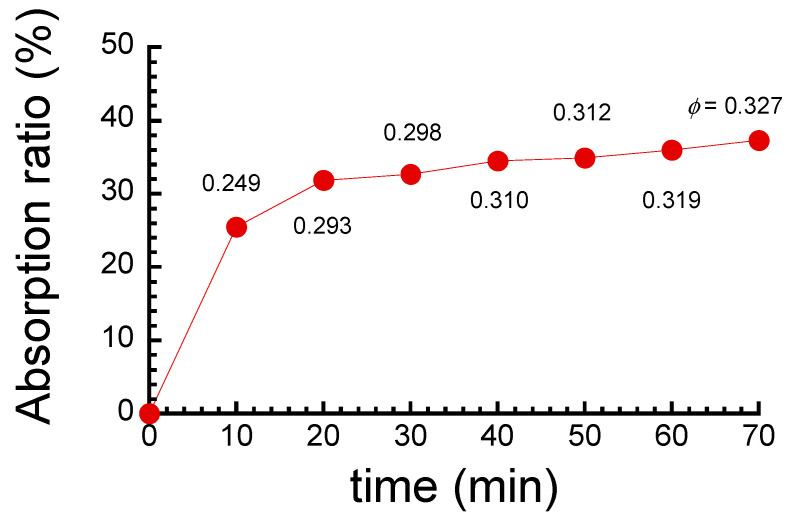

Transitions seen in the electric properties of water-absorbable poly(2,5-benzimidazole) (ABPBI) films were confirmed by electric conductivity, dielectric constant, and time-domain nuclear magnetic resonance (NMR) measurements. The electric resistance of the films was measured at room temperature using a high-resistance meter, and the dielectric constant at room temperature was measured using an LCR meter in the frequency range of 90 Hz to 8 MHz. The water absorption ratio at equilibrium absorption for the films was 37%, which corresponded to a volume fraction of water of 0.33. The electric conductivity of the films without water absorption was ~10¹⁴ S·cm^-1, and it increased to ~10¹⁰ S·cm^-1 with increasing volume fraction, showing a percolation threshold at a volume fraction of 0.025, and remarkable transitions at volume fractions of 0.075 and 0.135. The dielectric constant of the films without water absorption was 3.4, and it increased to 8.1 with increasing volume fraction, showing a transition only at a volume fraction of 0.135. Above a volume fraction of 0.075, where a transition in conductivity was observed, there were two relaxation times at 18-31 μs and 20-93 μs, as determined from the time-domain NMR, and these relaxation times increased with increasing volume fraction. The longer relaxation time increased significantly at a volume fraction of 0.072, which was close to the volume fraction of the transition seen in conductivity. The relationship between the chain mobility of ABPBI and the deterioration in electric insulating properties is discussed.
