Superior strength-ductility synergy in novel as-cast L12-type HEI Ni50Co25Cr9.5Al9Ti5Ta1.5 with hierarchical core-shell structure

IF 9.3 1区 材料科学 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY Acta Materialia Pub Date : 2025-04-15 Epub Date: 2025-02-06 DOI:10.1016/j.actamat.2025.120811
Junqi Liu , Xiaopeng Wang , Xiao Zong , Xianfei Ding , Hui Xu , Fei Yang , Fantao Kong
{"title":"Superior strength-ductility synergy in novel as-cast L12-type HEI Ni50Co25Cr9.5Al9Ti5Ta1.5 with hierarchical core-shell structure","authors":"Junqi Liu ,&nbsp;Xiaopeng Wang ,&nbsp;Xiao Zong ,&nbsp;Xianfei Ding ,&nbsp;Hui Xu ,&nbsp;Fei Yang ,&nbsp;Fantao Kong","doi":"10.1016/j.actamat.2025.120811","DOIUrl":null,"url":null,"abstract":"<div><div>The development of high-entropy intermetallic (HEI) with core-shell structure is promising for solving strength-ductility dilemma. Here, we successfully impart stable dual-scale L1<sub>2</sub>-type ordered core into as-cast HEI, promoting a novel L1<sub>2</sub>-type HEI Ni<sub>50</sub>Co<sub>25</sub>Cr<sub>9.5</sub>Al<sub>9</sub>Ti<sub>5</sub>Ta<sub>1.5</sub> with hierarchical core-shell structure. The locally compositional segregation induced hierarchical core-shell structure contributes to an excellent strength-ductility synergy with yield strength, ultimate tensile strength and uniform elongation of ∼1000 MPa, ∼1250 MPa and ∼12 %, respectively. Our study reveals that the outstanding strength is attributed to significant micro-level precipitation strengthening and additional multi-level hetero-deformation induced (HDI) strengthening. Besides, the considerable ductility is ascribed to active dislocation movement and remarkable strain hardening capability. Moreover, micro-level SFs dominated deformation mechanism and macro-level fracture mechanism are also carefully investigated. The purpose of this work is not only to improve mechanical properties of as-cast L1<sub>2</sub>-type HEI, but more importantly to correlate hierarchical core-shell structure with mechanical properties, deformation behavior and fracture mechanism, so as to shed light on a new direction for exploring novel advanced as-cast structural materials.</div></div>","PeriodicalId":238,"journal":{"name":"Acta Materialia","volume":"288 ","pages":"Article 120811"},"PeriodicalIF":9.3000,"publicationDate":"2025-04-15","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Acta Materialia","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S135964542500103X","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2025/2/6 0:00:00","PubModel":"Epub","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

The development of high-entropy intermetallic (HEI) with core-shell structure is promising for solving strength-ductility dilemma. Here, we successfully impart stable dual-scale L12-type ordered core into as-cast HEI, promoting a novel L12-type HEI Ni50Co25Cr9.5Al9Ti5Ta1.5 with hierarchical core-shell structure. The locally compositional segregation induced hierarchical core-shell structure contributes to an excellent strength-ductility synergy with yield strength, ultimate tensile strength and uniform elongation of ∼1000 MPa, ∼1250 MPa and ∼12 %, respectively. Our study reveals that the outstanding strength is attributed to significant micro-level precipitation strengthening and additional multi-level hetero-deformation induced (HDI) strengthening. Besides, the considerable ductility is ascribed to active dislocation movement and remarkable strain hardening capability. Moreover, micro-level SFs dominated deformation mechanism and macro-level fracture mechanism are also carefully investigated. The purpose of this work is not only to improve mechanical properties of as-cast L12-type HEI, but more importantly to correlate hierarchical core-shell structure with mechanical properties, deformation behavior and fracture mechanism, so as to shed light on a new direction for exploring novel advanced as-cast structural materials.

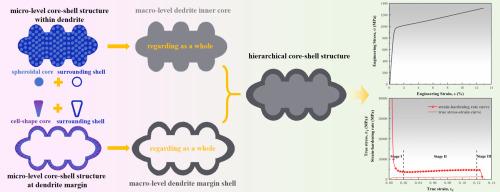

Abstract Image

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
具有分层核壳结构的新型铸态l12型HEI Ni50Co25Cr9.5Al9Ti5Ta1.5的强塑性协同效应
具有核-壳结构的高熵金属间化合物(HEI)的发展有望解决强度-延性难题。本文成功地将稳定的双尺度l12型有序核注入铸态HEI中,促进了具有分层核壳结构的新型l12型HEI Ni50Co25Cr9.5Al9Ti5Ta1.5。局部成分偏析诱导的分层核壳结构有助于优异的强度-延性协同作用,其屈服强度、极限抗拉强度和均匀伸长率分别为~ 1000 MPa、~ 1250 MPa和~ 12%。研究表明,其突出的强度是由于显著的微观沉淀强化和额外的多级异质变形诱导(HDI)强化。此外,显著的塑性是由于位错的活跃运动和显著的应变硬化能力。此外,还对微观层面的SFs主导变形机制和宏观层面的断裂机制进行了深入研究。本工作的目的不仅在于提高铸态l12型HEI的力学性能,更重要的是将分层核壳结构与力学性能、变形行为和断裂机制联系起来,从而为探索新型先进铸态结构材料指明新的方向。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
求助全文
约1分钟内获得全文 去求助
来源期刊
Acta Materialia
Acta Materialia 工程技术-材料科学:综合
CiteScore
16.10
自引率
8.50%
发文量
801
审稿时长
53 days
期刊介绍: Acta Materialia serves as a platform for publishing full-length, original papers and commissioned overviews that contribute to a profound understanding of the correlation between the processing, structure, and properties of inorganic materials. The journal seeks papers with high impact potential or those that significantly propel the field forward. The scope includes the atomic and molecular arrangements, chemical and electronic structures, and microstructure of materials, focusing on their mechanical or functional behavior across all length scales, including nanostructures.
期刊最新文献
Overcoming the sensitivity of sodium bismuth titanate towards sintering in a reducing atmosphere by defect chemistry engineering Strength-ductility synergy in diamond-nanoparticle-dispersed nanotwinned Cu with defective twin boundaries Incipient decomposition of nitrogen-expanded Austenite in Si-containing high-Ni alloys during nitriding Simultaneously improving strength and thermal stability of Al-Cu-Sc alloys through Cd micro-alloying Discontinuous versus continuous yielding in medium-Mn steel: Role of the coherence of ferrite/austenite interface
×
引用
GB/T 7714-2015
复制
MLA
复制
APA
复制
导出至
BibTeX EndNote RefMan NoteFirst NoteExpress
×
×
提示
您的信息不完整,为了账户安全,请先补充。
现在去补充
×
提示
您因"违规操作"
具体请查看互助需知
我知道了
×
提示
现在去查看 取消
×
提示
确定
0
微信
客服QQ
Book学术公众号 扫码关注我们
反馈
×
意见反馈
请填写您的意见或建议
请填写您的手机或邮箱
已复制链接
已复制链接
快去分享给好友吧!
我知道了
×
扫码分享
扫码分享
Book学术官方微信
Book学术文献互助
Book学术文献互助群
群 号:604180095
Book学术
文献互助 智能选刊 最新文献 互助须知 联系我们:info@booksci.cn
Book学术提供免费学术资源搜索服务,方便国内外学者检索中英文文献。致力于提供最便捷和优质的服务体验。
Copyright © 2023 Book学术 All rights reserved.
ghs 京公网安备 11010802042870号 京ICP备2023020795号-1
