Sequential Structural Evolution Triggered by O─O Dimerization in Oxygen-Redox Reactions

Abstract

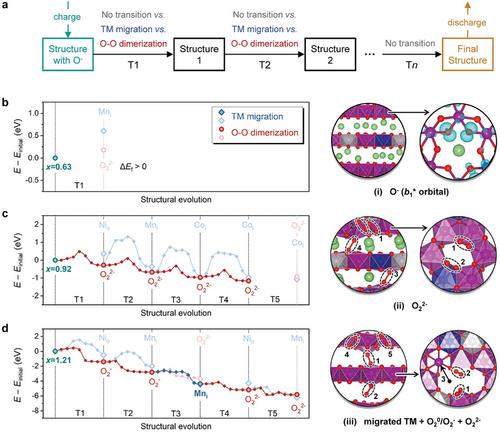

The participation of oxygen in electrochemical reactions increases the capacity of lithium-ion battery positive electrodes beyond conventional cationic-redox limits. However, structural degradation due to oxidized oxide ions significantly reduces the discharge voltage compared with that in the first charge, mostly with a capacity loss. In this study, it is shown that O─O dimerization triggers transition-metal migration in an oxygen-redox positive electrode upon charging. First-principles calculations are performed to reveal the thermodynamic and kinetic energy landscapes of the full structural evolution of a typical lithium-rich oxide, i.e., Li_1.2Ni_0.13Co_0.13Mn_0.54O₂. The oxygen oxidation process can be divided into three sequential steps: i) generation of persistent oxidized oxide ion O⁻; ii) peroxide formation; and iii) transition-metal migration. The elusive use of O²⁻/O⁻ while blocking O─O dimerization is the key to avoiding structural degradation due to transition-metal migration and realizing energy-efficient oxygen-redox reactions.
