T1/T2 mapping as a non-invasive method for evaluating liver fibrosis based on correlation of biomarkers: a preclinical study.

Abstract

Background: Given the inherent limitations of invasive biopsy and the insufficient accuracy of liver-related serum biomarkers, there is an urgent need for the development of reliable, non-invasive imaging techniques for the diagnosis of liver fibrosis. This study aims to investigate the correlation between magnetic resonance imaging (MRI) T1/T2 mapping sequences and biomarkers of collagen deposition and ongoing systemic inflammation, and to evaluate the potential of T1/T2 mapping as a non-invasive method for the accurate diagnosis of liver fibrosis.

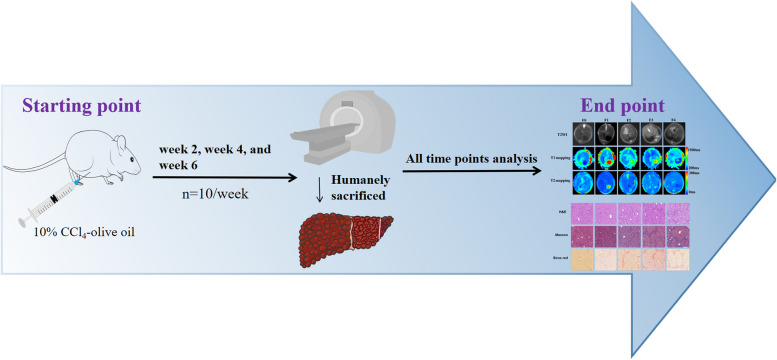

Methods: A mouse model of carbon tetrachloride (CCl₄)-induced liver fibrosis was established and T1/T2 mapping were performed at different weeks of treatment. The histopathological analysis, collagen quantification, and inflammatory factors measurements (IL-1, IL-6, TNF-α) were conducted to correlate MRI parameters with collagen deposition and inflammation. Statistical analysis was performed using IBM SPSS Statistics (version 22.0, Chicago, IL, USA) and Origin 2018 (OriginLab Corporation, Northampton, MA, USA).

Results: The principal findings indicated that T1 and T2 values exhibited a progressive increase with the severity of fibrosis, demonstrating a positive correlation with collagen deposition and inflammatory factors, especially the hydroxyproline content (r = 0.880, P < 0.001). The HYP content exhibited a progressive increase with advancing fibrosis stages (ρ = 0.914, P < 0.001). Similarly, T1 values increased significantly across fibrosis stage(ρ = 0.854, P < 0.001). Statistical comparison of these coefficients revealed no significant difference (Z = 1.031, P = 0.303). ROC curve analysis showed that T1 mapping was more accurate than T2 mapping in detecting collagen deposition and inflammation.

Conclusions: This study highlighted the potential of T1/T2 mapping as non-invasive and quantitative biomarkers for diagnosing and staging liver fibrosis, providing new insights into the onset and progression of liver fibrosis.
