{"title":"Wide E-Plane Beamwidth Microstrip Patch Antenna Using H-Shaped Gap-Coupling with Three Parasitic Patches for the K-Band","authors":"J. Park, Moon‐Que Lee","doi":"10.1155/2023/4500294","DOIUrl":null,"url":null,"abstract":"This article presents a new wide E-plane beamwidth rectangular microstrip patch antenna adopting H-shaped gap-coupling with three parasitic patches for the K-band vehicle parking monitoring system, while keeping single substrate. Both side and upper parasitic elements serve as λ and λ/2 resonators and are excited primarily by magnetic and electric couplings, respectively. The synthesis of radiation patterns from main and auxiliary elements results in the E-plane wide-beamwidth property. The proposed gap-coupling antenna provided the peak gain of 4.82 dBi, E-plane half-power beamwidth (HPBW) of 143.4°, and co-to-cross-pol ratios of 22.7 and 20.2 dB within the HPBW for the E- and H-planes, respectively. The presented geometry showed excellent figure of merits compared with others for the K-band.","PeriodicalId":54944,"journal":{"name":"International Journal of RF and Microwave Computer-Aided Engineering","volume":" ","pages":""},"PeriodicalIF":0.9000,"publicationDate":"2023-06-19","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"International Journal of RF and Microwave Computer-Aided Engineering","FirstCategoryId":"5","ListUrlMain":"https://doi.org/10.1155/2023/4500294","RegionNum":4,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q4","JCRName":"COMPUTER SCIENCE, INTERDISCIPLINARY APPLICATIONS","Score":null,"Total":0}
引用次数: 0
Abstract

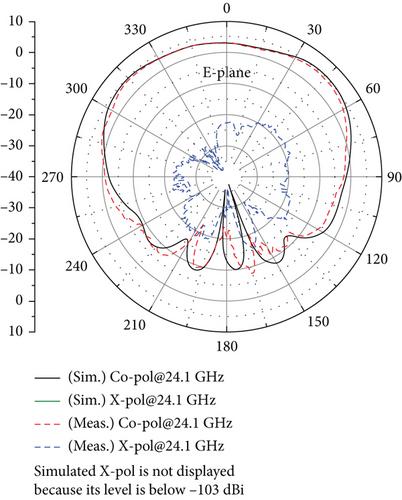

This article presents a new wide E-plane beamwidth rectangular microstrip patch antenna adopting H-shaped gap-coupling with three parasitic patches for the K-band vehicle parking monitoring system, while keeping single substrate. Both side and upper parasitic elements serve as λ and λ/2 resonators and are excited primarily by magnetic and electric couplings, respectively. The synthesis of radiation patterns from main and auxiliary elements results in the E-plane wide-beamwidth property. The proposed gap-coupling antenna provided the peak gain of 4.82 dBi, E-plane half-power beamwidth (HPBW) of 143.4°, and co-to-cross-pol ratios of 22.7 and 20.2 dB within the HPBW for the E- and H-planes, respectively. The presented geometry showed excellent figure of merits compared with others for the K-band.
