抑制寄生反应的琼脂基界面,实现高性能水性锌离子电池

IF 5.1 4区 材料科学 Q2 ELECTROCHEMISTRY Batteries & Supercaps Pub Date : 2024-04-16 DOI:10.1002/batt.202400159
Dr. Yi-Fan Qu, Dr. Xin Liu, Dr. Jia-Wei Qian, Prof. Jingwei Chen, Prof. Li-Feng Chen
{"title":"抑制寄生反应的琼脂基界面,实现高性能水性锌离子电池","authors":"Dr. Yi-Fan Qu,&nbsp;Dr. Xin Liu,&nbsp;Dr. Jia-Wei Qian,&nbsp;Prof. Jingwei Chen,&nbsp;Prof. Li-Feng Chen","doi":"10.1002/batt.202400159","DOIUrl":null,"url":null,"abstract":"<p>With advantages including high capacity, intrinsic safety and low cost, aqueous zinc-ion batteries (AZIBs) are ideal electrochemical energy storage devices for large-scale and portable energy storage. However, the development of AZIBs suffers from tricky challenges, such as the notorious Zn dendrite growth and severe parasitic reactions. Herein, as a low-cost and nontoxic biomass, agar is adopted to construct an interface layer on Zn foil to mitigate side reactions and induce uniform Zn deposition on Zn anodes. The interaction between Zn<sup>2+</sup> and polar functional groups of agar can regulate Zn<sup>2+</sup> distribution and promote Zn<sup>2+</sup> desolvation, thus simultaneously achieving homogenous Zn deposition and suppressed hydrogen evolution reaction. Meanwhile, SO<sub>4</sub><sup>2−</sup> anions are blocked from contacting Zn surface due to electrostatic repulsion, greatly restraining corrosion and passivation. Consequently, Zn||A-Cu asymmetric cell operates normally for 590 cycles with an average coulombic efficiency of 99.5 %, suggesting good reversibility of Zn plating/stripping. Notably, A-Zn symmetric cell exhibits a long lifespan of 1100 h at 2 mA cm<sup>−2</sup>. Furthermore, the A-Zn||NVO full cell displays a superb capacity retention of 94.8 % after 3600 cycles at 5 A g<sup>−1</sup>. This work offers a novel interface modification method for constructing stable and dendrite-free anodes of AZIBs.</p>","PeriodicalId":132,"journal":{"name":"Batteries & Supercaps","volume":"7 9","pages":""},"PeriodicalIF":5.1000,"publicationDate":"2024-04-16","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Agar-Based Interface for Suppressing Parasitic Reactions toward High-Performance Aqueous Zn-Ion Batteries\",\"authors\":\"Dr. Yi-Fan Qu,&nbsp;Dr. Xin Liu,&nbsp;Dr. Jia-Wei Qian,&nbsp;Prof. Jingwei Chen,&nbsp;Prof. Li-Feng Chen\",\"doi\":\"10.1002/batt.202400159\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>With advantages including high capacity, intrinsic safety and low cost, aqueous zinc-ion batteries (AZIBs) are ideal electrochemical energy storage devices for large-scale and portable energy storage. However, the development of AZIBs suffers from tricky challenges, such as the notorious Zn dendrite growth and severe parasitic reactions. Herein, as a low-cost and nontoxic biomass, agar is adopted to construct an interface layer on Zn foil to mitigate side reactions and induce uniform Zn deposition on Zn anodes. The interaction between Zn<sup>2+</sup> and polar functional groups of agar can regulate Zn<sup>2+</sup> distribution and promote Zn<sup>2+</sup> desolvation, thus simultaneously achieving homogenous Zn deposition and suppressed hydrogen evolution reaction. Meanwhile, SO<sub>4</sub><sup>2−</sup> anions are blocked from contacting Zn surface due to electrostatic repulsion, greatly restraining corrosion and passivation. Consequently, Zn||A-Cu asymmetric cell operates normally for 590 cycles with an average coulombic efficiency of 99.5 %, suggesting good reversibility of Zn plating/stripping. Notably, A-Zn symmetric cell exhibits a long lifespan of 1100 h at 2 mA cm<sup>−2</sup>. Furthermore, the A-Zn||NVO full cell displays a superb capacity retention of 94.8 % after 3600 cycles at 5 A g<sup>−1</sup>. This work offers a novel interface modification method for constructing stable and dendrite-free anodes of AZIBs.</p>\",\"PeriodicalId\":132,\"journal\":{\"name\":\"Batteries & Supercaps\",\"volume\":\"7 9\",\"pages\":\"\"},\"PeriodicalIF\":5.1000,\"publicationDate\":\"2024-04-16\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Batteries & Supercaps\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://onlinelibrary.wiley.com/doi/10.1002/batt.202400159\",\"RegionNum\":4,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"ELECTROCHEMISTRY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Batteries & Supercaps","FirstCategoryId":"88","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/batt.202400159","RegionNum":4,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"ELECTROCHEMISTRY","Score":null,"Total":0}
引用次数: 0

摘要

锌离子水电池(AZIBs)具有容量大、内在安全和成本低等优点,是大规模和便携式储能的理想电化学储能设备。然而,AZIBs 的开发面临着棘手的挑战,例如臭名昭著的锌枝晶生长和严重的寄生反应。在本文中,琼脂作为一种低成本、无毒的生物质,被用来在锌箔上构建界面层,以减轻副反应并诱导锌在锌阳极上均匀沉积。Zn2+ 与琼脂极性官能团之间的相互作用可以调节 Zn2+ 的分布,促进 Zn2+ 的脱溶,从而同时实现均匀的 Zn 沉积和抑制氢演化反应。同时,由于静电排斥作用,SO42- 阴离子被阻止与 Zn 表面接触,从而大大抑制了腐蚀和钝化。因此,Zn||A-Cu 不对称电池可正常运行 590 个周期,平均库仑效率为 99.5%,表明 Zn 镀层/剥离具有良好的可逆性。值得注意的是,在 2 mA cm-2 电流条件下,A-Zn 对称电池的寿命长达 1100 小时。此外,A-Zn||NVO 全电池在 5 A g-1 的条件下循环 3600 次后,容量保持率高达 94.8%。这项研究为构建稳定、无树枝状突起的 AZIBs 阳极提供了一种新颖的界面改性方法。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

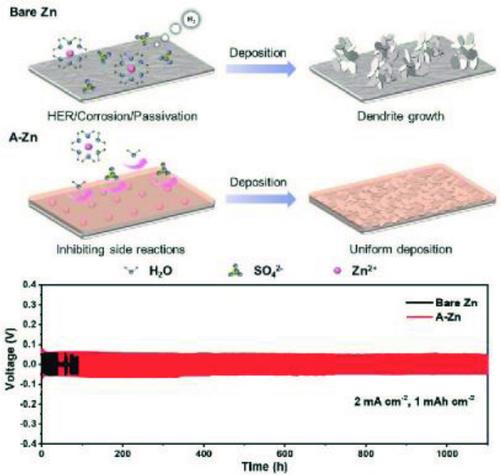

摘要图片

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
Agar-Based Interface for Suppressing Parasitic Reactions toward High-Performance Aqueous Zn-Ion Batteries

With advantages including high capacity, intrinsic safety and low cost, aqueous zinc-ion batteries (AZIBs) are ideal electrochemical energy storage devices for large-scale and portable energy storage. However, the development of AZIBs suffers from tricky challenges, such as the notorious Zn dendrite growth and severe parasitic reactions. Herein, as a low-cost and nontoxic biomass, agar is adopted to construct an interface layer on Zn foil to mitigate side reactions and induce uniform Zn deposition on Zn anodes. The interaction between Zn2+ and polar functional groups of agar can regulate Zn2+ distribution and promote Zn2+ desolvation, thus simultaneously achieving homogenous Zn deposition and suppressed hydrogen evolution reaction. Meanwhile, SO42− anions are blocked from contacting Zn surface due to electrostatic repulsion, greatly restraining corrosion and passivation. Consequently, Zn||A-Cu asymmetric cell operates normally for 590 cycles with an average coulombic efficiency of 99.5 %, suggesting good reversibility of Zn plating/stripping. Notably, A-Zn symmetric cell exhibits a long lifespan of 1100 h at 2 mA cm−2. Furthermore, the A-Zn||NVO full cell displays a superb capacity retention of 94.8 % after 3600 cycles at 5 A g−1. This work offers a novel interface modification method for constructing stable and dendrite-free anodes of AZIBs.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
