How to obtain the image-derived blood concentration from ⁸⁹Zr-immuno-PET scans.

IF 3 2区医学 Q2 RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING EJNMMI Physics Pub Date : 2024-02-07 DOI:10.1186/s40658-024-00621-7

Jessica E Wijngaarden, Amina Ahbari, Johanna E E Pouw, Henri N J M Greuter, Idris Bahce, Gerben J C Zwezerijnen, Daniëlle J Vugts, Guus A M S van Dongen, Ronald Boellaard, C Willemien Menke-van der Houven van Oordt, Marc C Huisman

{"title":"How to obtain the image-derived blood concentration from 89Zr-immuno-PET scans.","authors":"Jessica E Wijngaarden, Amina Ahbari, Johanna E E Pouw, Henri N J M Greuter, Idris Bahce, Gerben J C Zwezerijnen, Daniëlle J Vugts, Guus A M S van Dongen, Ronald Boellaard, C Willemien Menke-van der Houven van Oordt, Marc C Huisman","doi":"10.1186/s40658-024-00621-7","DOIUrl":null,"url":null,"abstract":"Background: PET scans using zirconium-89 labelled monoclonal antibodies (89Zr-mAbs), known as 89Zr-immuno-PET, are made to measure uptake in tumour and organ tissue. Uptake is related to the supply of 89Zr-mAbs in the blood. Measuring activity concentrations in blood, however, requires invasive blood sampling. This study aims to identify the best delineation strategy to obtain the image-derived blood concentration (IDBC) from 89Zr-immuno-PET scans.Methods: PET imaging and blood sampling of two 89Zr-mAbs were included, 89Zr-cetuximab and 89Zr-durvalumab. For seven patients receiving 89Zr-cetuximab, PET scans on 1-2 h, 2 and 6 days post-injection (p.i.) were analysed. Five patients received three injections of 89Zr-durvalumab. The scanning protocol for the first two injections consisted of PET scanning on 2, 5 and 7 days p.i. and for the third injection only on 7 days p.i. Blood samples were drawn with every PET scan and the sample-derived blood concentration (SDBC) was used as gold standard for the IDBC. According to an in-house developed standard operating procedure, the aortic arch, ascending aorta, descending aorta and left ventricle were delineated. Bland-Altman analyses were performed to assess the bias (mean difference) and variability (1.96 times the standard deviation of the differences) between IDBC and SDBC.Results: Overall, the activity concentration obtained from the IDBC was lower than from the SDBC. When comparing IDBC with SDBC, variability was smallest for the ascending aorta (20.3% and 17.0% for 89Zr-cetuximab and 89Zr-durvalumab, respectively). Variability for the other regions ranged between 17.9 and 30.8%. Bias for the ascending aorta was - 10.9% and - 11.4% for 89Zr-cetuximab and 89Zr-durvalumab, respectively.Conclusions: Image-derived blood concentrations should be obtained from delineating the ascending aorta in 89Zr-immuno-PET scans, as this results in the lowest variability with respect to sample-derived blood concentrations.","PeriodicalId":11559,"journal":{"name":"EJNMMI Physics","volume":"11 1","pages":"16"},"PeriodicalIF":3.0000,"publicationDate":"2024-02-07","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC10847076/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"EJNMMI Physics","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.1186/s40658-024-00621-7","RegionNum":2,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING","Score":null,"Total":0}

引用次数: 0

Abstract

Background: PET scans using zirconium-89 labelled monoclonal antibodies (⁸⁹Zr-mAbs), known as ⁸⁹Zr-immuno-PET, are made to measure uptake in tumour and organ tissue. Uptake is related to the supply of ⁸⁹Zr-mAbs in the blood. Measuring activity concentrations in blood, however, requires invasive blood sampling. This study aims to identify the best delineation strategy to obtain the image-derived blood concentration (IDBC) from ⁸⁹Zr-immuno-PET scans.

Methods: PET imaging and blood sampling of two ⁸⁹Zr-mAbs were included, ⁸⁹Zr-cetuximab and ⁸⁹Zr-durvalumab. For seven patients receiving ⁸⁹Zr-cetuximab, PET scans on 1-2 h, 2 and 6 days post-injection (p.i.) were analysed. Five patients received three injections of ⁸⁹Zr-durvalumab. The scanning protocol for the first two injections consisted of PET scanning on 2, 5 and 7 days p.i. and for the third injection only on 7 days p.i. Blood samples were drawn with every PET scan and the sample-derived blood concentration (SDBC) was used as gold standard for the IDBC. According to an in-house developed standard operating procedure, the aortic arch, ascending aorta, descending aorta and left ventricle were delineated. Bland-Altman analyses were performed to assess the bias (mean difference) and variability (1.96 times the standard deviation of the differences) between IDBC and SDBC.

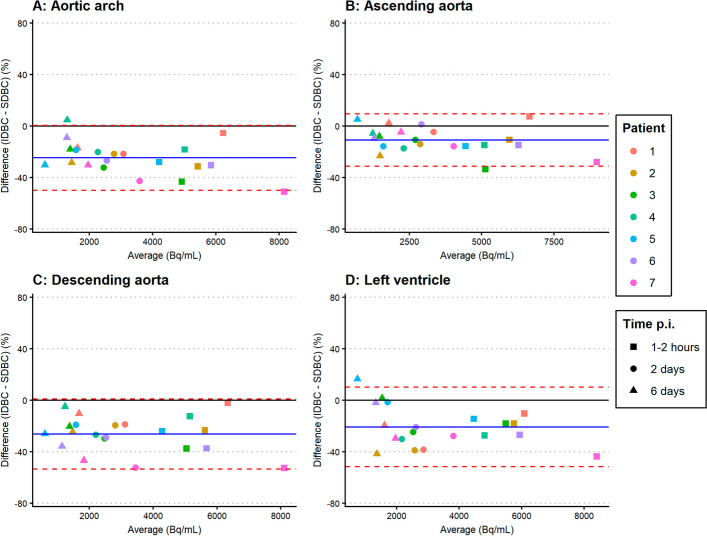

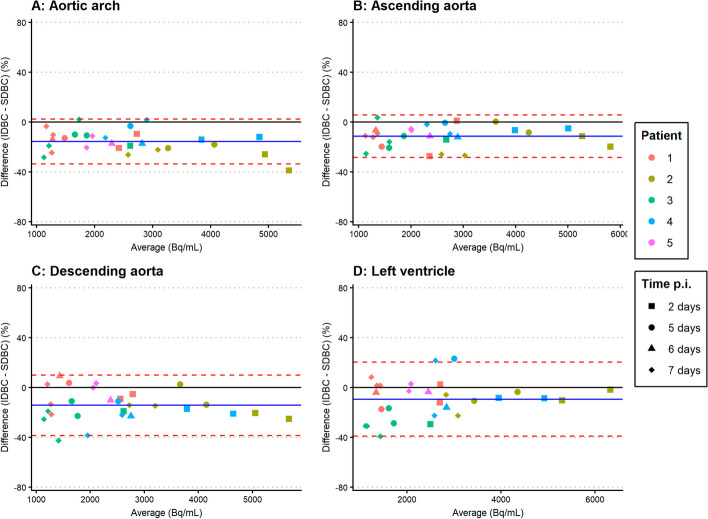

Results: Overall, the activity concentration obtained from the IDBC was lower than from the SDBC. When comparing IDBC with SDBC, variability was smallest for the ascending aorta (20.3% and 17.0% for ⁸⁹Zr-cetuximab and ⁸⁹Zr-durvalumab, respectively). Variability for the other regions ranged between 17.9 and 30.8%. Bias for the ascending aorta was - 10.9% and - 11.4% for ⁸⁹Zr-cetuximab and ⁸⁹Zr-durvalumab, respectively.

Conclusions: Image-derived blood concentrations should be obtained from delineating the ascending aorta in ⁸⁹Zr-immuno-PET scans, as this results in the lowest variability with respect to sample-derived blood concentrations.
