A nomogram based on dual-layer detector spectral computed tomography quantitative parameters and morphological quantitative indicator for distinguishing metastatic and nonmetastatic regional lymph nodes in pancreatic ductal adenocarcinoma.

Abstract

Background: There is no unified scope for regional lymph node (LN) dissection in patients with pancreatic ductal adenocarcinoma (PDAC). Incomplete regional LN dissection can lead to postoperative recurrence, while blind expansion of the scope of regional LN dissection significantly increases the perioperative risk without significantly prolonging overall survival. We aimed to establish a noninvasive visualization tool based on dual-layer detector spectral computed tomography (DLCT) to predict the probability of regional LN metastasis in patients with PDAC.

Methods: A total of 163 regional LNs were reviewed and divided into a metastatic cohort (n=58 LNs) and nonmetastatic cohort (n=105 LNs). The DLCT quantitative parameters and the nodal ratio of the longest axis to the shortest axis (L/S) of the regional LNs were compared between the two cohorts. The DLCT quantitative parameters included the iodine concentration in the arterial phase (APIC), normalized iodine concentration in the arterial phase (APNIC), effective atomic number in the arterial phase (APZeff), normalized effective atomic number in the arterial phase (APNZeff), slope of the spectral attenuation curves in the arterial phase (APλHU), iodine concentration in the portal venous phase (PVPIC), normalized iodine concentration in the portal venous phase (PVPNIC), effective atomic number in the portal venous phase (PVPZeff), normalized effective atomic number in the portal venous phase (PVPNZeff), and slope of the spectral attenuation curves in the portal venous phase (PVPλHU). Logistic regression analysis based on area under the curve (AUC) was used to analyze the diagnostic performance of significant DLCT quantitative parameters, L/S, and the models combining significant DLCT quantitative parameters and L/S. A nomogram based on the models with highest diagnostic performance was developed as a predictor. The goodness of fit and clinical applicability of the nomogram were assessed through calibration curve and decision curve analysis (DCA).

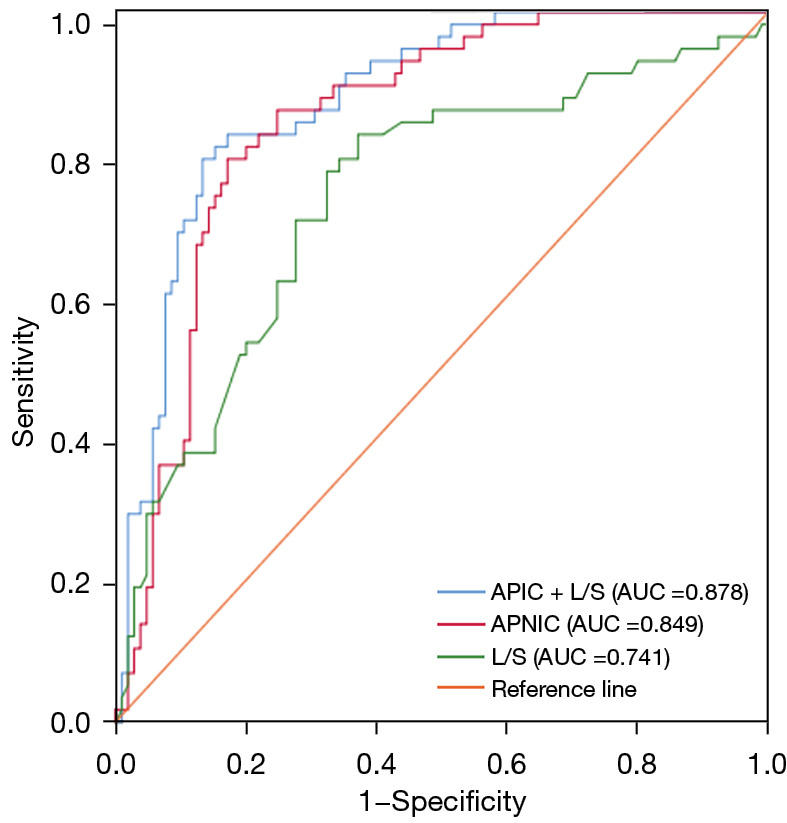

Results: The combined model of APNIC + L/S (APNIC + L/S) had the highest diagnostic performance among all models, yielding an AUC, sensitivity, and specificity of 0.878 [95% confidence interval (CI): 0.825-0.931], 0.707, and 0.886, respectively. The calibration curve indicated that the APNIC-L/S nomogram had good agreement between the predicted probability and the actual probability. Meanwhile, the decision curve indicated that the APNIC-L/S nomogram could produce a greater net benefit than could the all- or-no-intervention strategy, with threshold probabilities ranging from 0.0 to 0.75.

Conclusions: As a valid and visual noninvasive prediction tool, the APNIC-L/S nomogram demonstrated favorable predictive efficacy for identifying metastatic LNs in patients with PDAC.
