Breast Cancer Subtype Prediction Model Employing Artificial Neural Network and 18F-Fluorodeoxyglucose Positron Emission Tomography/ Computed Tomography.
{"title":"Breast Cancer Subtype Prediction Model Employing Artificial Neural Network and <sup>18</sup>F-Fluorodeoxyglucose Positron Emission Tomography/ Computed Tomography.","authors":"Alamgir Hossain, Shariful Islam Chowdhury","doi":"10.4103/jmp.jmp_181_23","DOIUrl":null,"url":null,"abstract":"<p><strong>Introduction: </strong>Although positron emission tomography/computed tomography (PET/CT) is a common tool for measuring breast cancer (BC), subtypes are not automatically classified by it. Therefore, the purpose of this research is to use an artificial neural network (ANN) to evaluate the clinical subtypes of BC based on the value of the tumor marker.</p><p><strong>Materials and methods: </strong>In our nuclear medical facility, 122 BC patients (training and testing) had <sup>18</sup>F-fluoro-D-glucose (<sup>18</sup>F-FDG) PET/CT to identify the various subtypes of the disease. <sup>18</sup>F-FDG-18 injections were administered to the patients before the scanning process. We carried out the scan according to protocol. Based on the tumor marker value, the ANN's output layer uses the Softmax function with cross-entropy loss to detect different subtypes of BC.</p><p><strong>Results: </strong>With an accuracy of 95.77%, the result illustrates the ANN model for K-fold cross-validation. The mean values of specificity and sensitivity were 0.955 and 0.958, respectively. The area under the curve on average was 0.985.</p><p><strong>Conclusion: </strong>Subtypes of BC may be categorized using the suggested approach. The PET/CT may be updated to diagnose BC subtypes using the appropriate tumor maker value when the suggested model is clinically implemented.</p>","PeriodicalId":51719,"journal":{"name":"Journal of Medical Physics","volume":null,"pages":null},"PeriodicalIF":0.7000,"publicationDate":"2024-04-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11309150/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Medical Physics","FirstCategoryId":"1085","ListUrlMain":"https://doi.org/10.4103/jmp.jmp_181_23","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2024/6/25 0:00:00","PubModel":"Epub","JCR":"Q4","JCRName":"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING","Score":null,"Total":0}
引用次数: 0
Abstract
Introduction: Although positron emission tomography/computed tomography (PET/CT) is a common tool for measuring breast cancer (BC), subtypes are not automatically classified by it. Therefore, the purpose of this research is to use an artificial neural network (ANN) to evaluate the clinical subtypes of BC based on the value of the tumor marker.

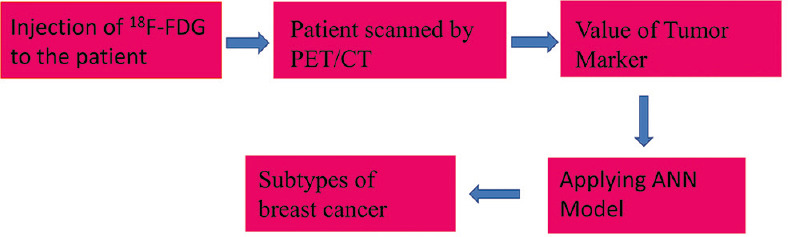

Materials and methods: In our nuclear medical facility, 122 BC patients (training and testing) had 18F-fluoro-D-glucose (18F-FDG) PET/CT to identify the various subtypes of the disease. 18F-FDG-18 injections were administered to the patients before the scanning process. We carried out the scan according to protocol. Based on the tumor marker value, the ANN's output layer uses the Softmax function with cross-entropy loss to detect different subtypes of BC.
Results: With an accuracy of 95.77%, the result illustrates the ANN model for K-fold cross-validation. The mean values of specificity and sensitivity were 0.955 and 0.958, respectively. The area under the curve on average was 0.985.
Conclusion: Subtypes of BC may be categorized using the suggested approach. The PET/CT may be updated to diagnose BC subtypes using the appropriate tumor maker value when the suggested model is clinically implemented.
简介尽管正电子发射断层扫描/计算机断层扫描(PET/CT)是测量乳腺癌(BC)的常用工具,但其并不能自动划分亚型。因此,本研究的目的是利用人工神经网络(ANN),根据肿瘤标志物的值来评估乳腺癌的临床亚型:在我们的核医疗设施中,122 名 BC 患者(培训和测试)接受了 18F- 氟-D-葡萄糖(18F-FDG)PET/CT 检查,以确定该疾病的各种亚型。扫描前,我们为患者注射了18F-FDG-18。我们按照方案进行扫描。根据肿瘤标志物值,ANN 的输出层使用带有交叉熵损失的 Softmax 函数来检测 BC 的不同亚型:结果:在 K 倍交叉验证中,ANN 模型的准确率为 95.77%。特异性和灵敏度的平均值分别为 0.955 和 0.958。曲线下面积平均为 0.985:结论:使用建议的方法可以对 BC 的亚型进行分类。当建议的模型在临床上实施时,PET/CT 可更新为使用适当的肿瘤制造者值来诊断 BC 亚型。
