Conformal Sodium Deposition Facilitated by Ion Adsorption-Intercalation Process within Hetero-Interface for Stable Sodium Metal Batteries

IF 24.4 1区 材料科学 Q1 CHEMISTRY, PHYSICAL Advanced Energy Materials Pub Date : 2024-10-18 DOI:10.1002/aenm.202403258
Lei Wang, Jinghan Zuo, Zixuan Wang, Chunqiao Jin, Qian Chen, Zhilin Yang, Bixuan Li, Pengbo Zhai, Yongji Gong
{"title":"Conformal Sodium Deposition Facilitated by Ion Adsorption-Intercalation Process within Hetero-Interface for Stable Sodium Metal Batteries","authors":"Lei Wang, Jinghan Zuo, Zixuan Wang, Chunqiao Jin, Qian Chen, Zhilin Yang, Bixuan Li, Pengbo Zhai, Yongji Gong","doi":"10.1002/aenm.202403258","DOIUrl":null,"url":null,"abstract":"Sodium (Na) metal battery is regarded as one of the most promising candidates for large-scale energy storage devices, benefiting from the abundant sodium reserves and low cost. However, its practical application is hindered by the dendrite growth and unstable electrode-electrolyte interface. Herein, a 3D sodiophilic structure composed of a carbon matrix overlaid with <i>g</i>-C<sub>3</sub>N<sub>4</sub> coating layers (<i>g</i>-C<sub>3</sub>N<sub>4</sub>/3D-C) is designed to stabilize the Na plating/stripping behavior. The sodiophilicity is endowed by a highly reversible adsorption-intercalation process at the hetero-interface, which can guide conformal Na deposition and induce the formation of inorganic-rich solid-electrolyte interphases with high structural stability and fast Na-ion transport. Meanwhile, the 3D scaffold can effectively accommodate Na deposition during Na plating/stripping and depress the dendrite formation. As a result, the half cell assembled with <i>g</i>-C<sub>3</sub>N<sub>4</sub>/3D-C electrode delivers long-term cycling performance at 1.0 mA cm<sup>−2</sup> with a high Coulombic efficiency of 99.92% for over 2000 cycles and of 99.94% even at 5 mA cm<sup>−2</sup>, 10 mAh cm<sup>−2</sup>. The practical feasibility of the <i>g</i>-C<sub>3</sub>N<sub>4</sub>/3D-C is verified with full cells, which shows favorable rate capability and long-cycle performance. The sodiophilic hetero-interface construction strategy proposed in this work sparks new insights for designing high-performance Na metal anodes.","PeriodicalId":111,"journal":{"name":"Advanced Energy Materials","volume":null,"pages":null},"PeriodicalIF":24.4000,"publicationDate":"2024-10-18","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Energy Materials","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1002/aenm.202403258","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

Abstract

Sodium (Na) metal battery is regarded as one of the most promising candidates for large-scale energy storage devices, benefiting from the abundant sodium reserves and low cost. However, its practical application is hindered by the dendrite growth and unstable electrode-electrolyte interface. Herein, a 3D sodiophilic structure composed of a carbon matrix overlaid with g-C3N4 coating layers (g-C3N4/3D-C) is designed to stabilize the Na plating/stripping behavior. The sodiophilicity is endowed by a highly reversible adsorption-intercalation process at the hetero-interface, which can guide conformal Na deposition and induce the formation of inorganic-rich solid-electrolyte interphases with high structural stability and fast Na-ion transport. Meanwhile, the 3D scaffold can effectively accommodate Na deposition during Na plating/stripping and depress the dendrite formation. As a result, the half cell assembled with g-C3N4/3D-C electrode delivers long-term cycling performance at 1.0 mA cm−2 with a high Coulombic efficiency of 99.92% for over 2000 cycles and of 99.94% even at 5 mA cm−2, 10 mAh cm−2. The practical feasibility of the g-C3N4/3D-C is verified with full cells, which shows favorable rate capability and long-cycle performance. The sodiophilic hetero-interface construction strategy proposed in this work sparks new insights for designing high-performance Na metal anodes.

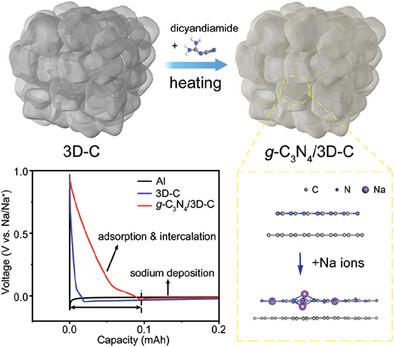

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
通过异质界面内的离子吸附-共煅过程促进共形钠沉积,实现稳定的金属钠电池
钠(Na)金属电池得益于丰富的钠储量和低廉的成本,被认为是最有前途的大规模储能设备之一。然而,枝晶生长和不稳定的电极-电解质界面阻碍了它的实际应用。在此,我们设计了一种由碳基体叠加 g-C3N4 涂层层(g-C3N4/3D-C)组成的三维亲钠结构,以稳定钠的电镀/剥离行为。异质界面上的高度可逆吸附-插层过程赋予了这种亲钠性,它可以引导 Na 的保形沉积,并诱导形成富含无机物的固态电解质相间层,这种相间层具有较高的结构稳定性和快速的 Na 离子传输能力。同时,三维支架能在 Na 镀层/剥离过程中有效容纳 Na 沉积,抑制树枝状突起的形成。因此,使用 g-C3N4/3D-C 电极组装的半电池在 1.0 mA cm-2 的条件下具有长期循环性能,在超过 2000 次循环中库仑效率高达 99.92%,即使在 5 mA cm-2 和 10 mAh cm-2 的条件下也能达到 99.94%。g-C3N4/3D-C 的实用可行性通过全电池得到了验证,显示出良好的速率能力和长周期性能。这项研究提出的亲钠异质界面构建策略为设计高性能 Na 金属阳极提供了新的思路。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
