High-Performance Flexible PLA/BTO-Based Pressure Sensor for Motion Monitoring and Human-Computer Interaction.

Abstract

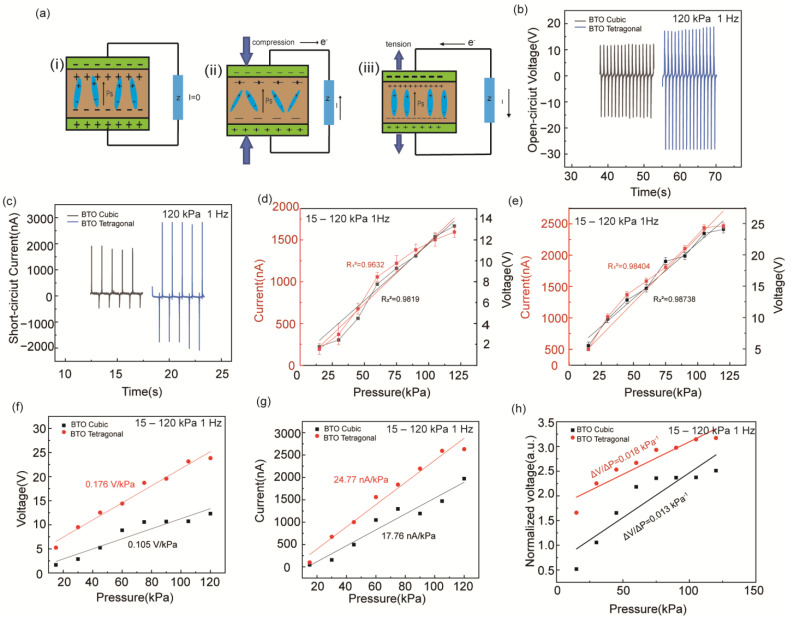

Flexible electronics show wide application prospects in electronic skin, health monitoring, and human-machine interfacing. As an essential part of flexible electronics, flexible pressure sensors have become a compelling subject of academic research. There is an urgent need to develop piezoelectric sensors with high sensitivity and stability. In this work, the high flexibility of polylactic acid (PLA) film and the excellent ferroelectric properties and high dielectric constant of tetragonal barium titanate (BTO) led to their use as filling materials to fabricate flexible piezoelectric composite films by spinning coating. PLA is used to produce flexible binding substrates, and BTO is added to the composite to enhance its electrical output by improving its piezoelectric performance. The peak output voltage of the PLA/BTO tetragonal piezoelectric film is 22.57 V, and the maximum short-circuit current was 3041 nA. Durability tests showed that during 40,000 s of continuous operation, in the range of 15~120 kPa, the linear relationship between pressure and the film was excellent, the sensitivity for the output voltage is 0.176 V/kPa, and the output current is 27.77 nA/kPa. The piezoelectric pressure sensor (PPS) also enables accurate motion detection, and the extensive capabilities of the PENG highlight its potential in advancing motion sensing and human-computer interactions.
