Switching From Acceptor to FRET Donor: How the Organic Solar Cell Architecture Can Change the Role of a Chromophore

IF 18.5 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY Advanced Functional Materials Pub Date : 2025-01-17 DOI:10.1002/adfm.202420416
Hui Jin, Neil Mallo, Guanran Zhang, Oliver Lindsay, Ronan Chu, Mile Gao, Shaun McAnally, Isaac M. Etchells, Paul L. Burn, Ian R. Gentle, Paul E. Shaw
{"title":"Switching From Acceptor to FRET Donor: How the Organic Solar Cell Architecture Can Change the Role of a Chromophore","authors":"Hui Jin, Neil Mallo, Guanran Zhang, Oliver Lindsay, Ronan Chu, Mile Gao, Shaun McAnally, Isaac M. Etchells, Paul L. Burn, Ian R. Gentle, Paul E. Shaw","doi":"10.1002/adfm.202420416","DOIUrl":null,"url":null,"abstract":"The third component in a ternary organic solar cell (OSC) is generally selected to maximize absorption of the solar spectrum. The fused ring non-fullerene acceptor 2,2′-[({4,4,9,9-tetra-<i>n</i>-octyl-4,9-dihydro-<i>s</i>-indaceno[1,2-<i>b</i>:5,6-<i>b</i>']dithiophene-2,7-diyl}bis{benzo[<i>c</i>][1,2,5]thiadiazole-7,4-diyl})bis(methaneylylidene)]dimalononitrile (<b>o-IDT-BT-DCV</b>) was investigated for use in binary and ternary OSCs. The optimized binary device with <b>o-IDT-BT-DCV</b> as the acceptor and PM6 as the donor had a maximum power conversion efficiency (PCE) of 10.8%. Incorporation of <b>o-IDT-BT-DCV</b> into a donor:acceptor PM6:Y6 blend delivered a ternary OSC with a maximum PCE of 16.2%. Femtosecond transient absorption spectroscopy (fs-TAS), transient photovoltage (TPV), and transient photocurrent (TPC) measurements in combination showed that <b>o-IDT-BT-DCV</b> in the ternary blend did not behave as an acceptor. Instead, it contributed to charge carrier generation through a sub-picosecond energy transfer process to Y6, followed by a photoinduced hole transfer mechanism with PM6 and/or spontaneous exciton dissociation within the Y6 phase. Encapsulated ternary blend devices were found to be more stable than the binary blend solar cells. Under 1-sun illumination and maximum power point (MPP) tracking, excluding the initial burn-in loss, the ternary device retained ≈80% of its MPP over 1200 h compared to the 40% retained by the PM6:Y6 devices.","PeriodicalId":112,"journal":{"name":"Advanced Functional Materials","volume":"68 1","pages":""},"PeriodicalIF":18.5000,"publicationDate":"2025-01-17","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Functional Materials","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1002/adfm.202420416","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

The third component in a ternary organic solar cell (OSC) is generally selected to maximize absorption of the solar spectrum. The fused ring non-fullerene acceptor 2,2′-[({4,4,9,9-tetra-n-octyl-4,9-dihydro-s-indaceno[1,2-b:5,6-b']dithiophene-2,7-diyl}bis{benzo[c][1,2,5]thiadiazole-7,4-diyl})bis(methaneylylidene)]dimalononitrile (o-IDT-BT-DCV) was investigated for use in binary and ternary OSCs. The optimized binary device with o-IDT-BT-DCV as the acceptor and PM6 as the donor had a maximum power conversion efficiency (PCE) of 10.8%. Incorporation of o-IDT-BT-DCV into a donor:acceptor PM6:Y6 blend delivered a ternary OSC with a maximum PCE of 16.2%. Femtosecond transient absorption spectroscopy (fs-TAS), transient photovoltage (TPV), and transient photocurrent (TPC) measurements in combination showed that o-IDT-BT-DCV in the ternary blend did not behave as an acceptor. Instead, it contributed to charge carrier generation through a sub-picosecond energy transfer process to Y6, followed by a photoinduced hole transfer mechanism with PM6 and/or spontaneous exciton dissociation within the Y6 phase. Encapsulated ternary blend devices were found to be more stable than the binary blend solar cells. Under 1-sun illumination and maximum power point (MPP) tracking, excluding the initial burn-in loss, the ternary device retained ≈80% of its MPP over 1200 h compared to the 40% retained by the PM6:Y6 devices.

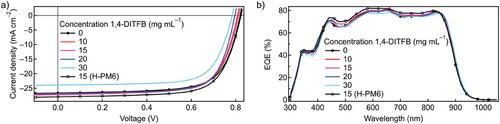

Abstract Image
