Sub-5 nm monolayer KMgX (X = P, As, Sb)-based homogeneous CMOS devices for high-performance applications†

IF 5.1 3区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY Nanoscale Pub Date : 2025-03-15 DOI:10.1039/D5NR00264H
Yandong Guo, Yuting Guo, Zhipeng Huan, Yue Jiang, Dongdong Wang, Xinyi Gao, Kairui Bian, Zengyun Gu, Shenyi Zhao, Xiaolu Duan, Liyan Lin, Hongli Zeng and Xiaohong Yan
{"title":"Sub-5 nm monolayer KMgX (X = P, As, Sb)-based homogeneous CMOS devices for high-performance applications†","authors":"Yandong Guo, Yuting Guo, Zhipeng Huan, Yue Jiang, Dongdong Wang, Xinyi Gao, Kairui Bian, Zengyun Gu, Shenyi Zhao, Xiaolu Duan, Liyan Lin, Hongli Zeng and Xiaohong Yan","doi":"10.1039/D5NR00264H","DOIUrl":null,"url":null,"abstract":"<p >For CMOS electronics, the channel materials – which can offer symmetrical performance for n- and p-type devices, along with the ability to scale transistors down to the ultra-scale limit – are crucial in the next era beyond silicon. Monolayer KMgX (X = P, As, Sb) not only possesses an atomically thin structure, but also exhibits high mobility for both electrons and holes; being advantageous for symmetrical performance and shrinking a device’s size. Based on first-principles calculations, the device performance limit of sub-5 nm monolayer KMgX (X = P, As, Sb) metal–oxide semiconductor field-effect transistors (MOSFETs) with a double-gated setup are investigated. The results show that, for all three KMgX configurations (X = P, As, Sb), both n- and p-type MOSFETs can meet the ITRS 2013 requirements for 2028 horizon in high-performance applications, even as <em>L</em><small><sub>g</sub></small> reduces to 3 nm. The ON-state currents of those systems exceed the performance of most previously reported monolayer MOSFETs. In particular, the 5 nm-<em>L</em><small><sub>g</sub></small> n-type KMgSb and KMgAs MOSFETs exhibit ultra-high ON-state currents of 3463 and 3248 μA μm<small><sup>−1</sup></small>, respectively. Furthermore, the ratios of subthreshold swing, ON-state current, fringe capacitance, delay time, and power-delay product between n- and p-type devices, demonstrate a high degree of symmetry. Our results suggest that the use of monolayer KMgX (X = P, As, Sb) MOSFETs would be highly advantageous for the development of sub-5 nm homogeneous CMOS electronics.</p>","PeriodicalId":92,"journal":{"name":"Nanoscale","volume":" 16","pages":" 10165-10176"},"PeriodicalIF":5.1000,"publicationDate":"2025-03-15","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Nanoscale","FirstCategoryId":"88","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/nr/d5nr00264h","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

For CMOS electronics, the channel materials – which can offer symmetrical performance for n- and p-type devices, along with the ability to scale transistors down to the ultra-scale limit – are crucial in the next era beyond silicon. Monolayer KMgX (X = P, As, Sb) not only possesses an atomically thin structure, but also exhibits high mobility for both electrons and holes; being advantageous for symmetrical performance and shrinking a device’s size. Based on first-principles calculations, the device performance limit of sub-5 nm monolayer KMgX (X = P, As, Sb) metal–oxide semiconductor field-effect transistors (MOSFETs) with a double-gated setup are investigated. The results show that, for all three KMgX configurations (X = P, As, Sb), both n- and p-type MOSFETs can meet the ITRS 2013 requirements for 2028 horizon in high-performance applications, even as Lg reduces to 3 nm. The ON-state currents of those systems exceed the performance of most previously reported monolayer MOSFETs. In particular, the 5 nm-Lg n-type KMgSb and KMgAs MOSFETs exhibit ultra-high ON-state currents of 3463 and 3248 μA μm−1, respectively. Furthermore, the ratios of subthreshold swing, ON-state current, fringe capacitance, delay time, and power-delay product between n- and p-type devices, demonstrate a high degree of symmetry. Our results suggest that the use of monolayer KMgX (X = P, As, Sb) MOSFETs would be highly advantageous for the development of sub-5 nm homogeneous CMOS electronics.

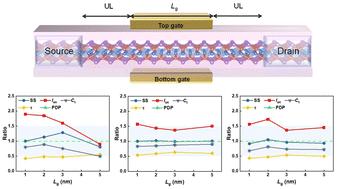

Abstract Image
